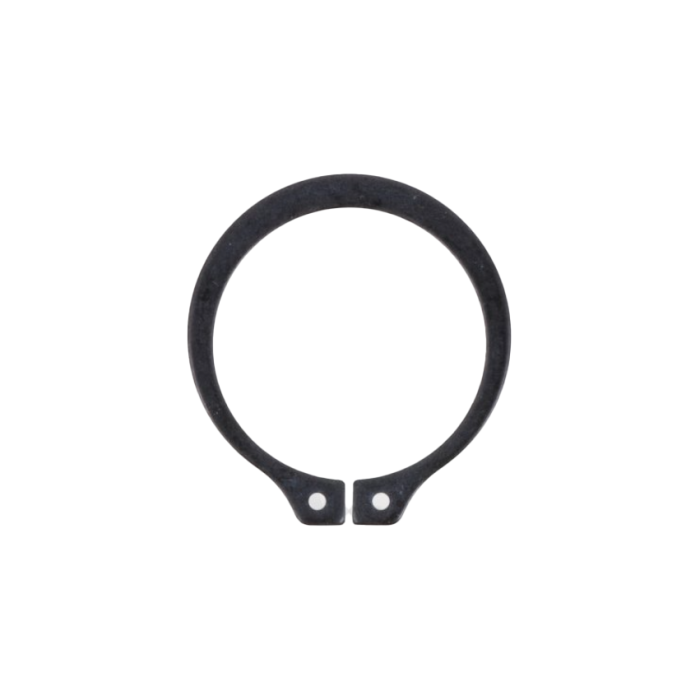

G.L.HUYETT™ BSH-100 IRR3101-100

Part Number: BSH-100, Weight (lbs.): 0.0036, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Snap Rings Bowed External, Hardness: HRC 47-53, Image: BSH-100.png, Country of Origin: USA, Groove Diameter: .940 in, Shaft Diameter: 1.000 in, Thickness: .042 in, Style: Stamped, Groove Width: .062 in, Allowable Corner Chamfers: .034 in, Allowable Corner Radii: .057 in, in Groove: 1.350 in, Distance Maximum: .060 in, Distance Minimum: .049 in, Edge Margin: .090 in, Free Diameter: .925 in, Groove Depth: .030 in, Groove Diameter to Shaft Concentricity: .004 in, Resilient Take Up of Tolerances: .011 in, Flat Force: 35 Pound-Force, Maximum Thrust Load: 1340 Pound-Force, Manufacturer Part Number: BSH-100ST PA, Free Diameter Tolerance: -0.5, Groove Diameter Tolerance: ±.003, Shaft Diameter Fraction: 1 in, Thickness Tolerance: ±.002, Hole Diameter: .078 in, Duty: Standard Duty, Bow Height: .073 in, Clearance Diameter Expanded Over Shaft: 1.410 in, Gaging Diameter Maximum: 1.122 in, Lug Height: .167 in, Maximum Section: .116 in, Minimum Section: .065 in, Maximum Section Tolerance: ±.005, Hole Diameter Tolerance: -7.5, Lug Height Tolerance: ±.004, Minimum Section Tolerance: ±.005, Bow Height Tolerance: ±.008
