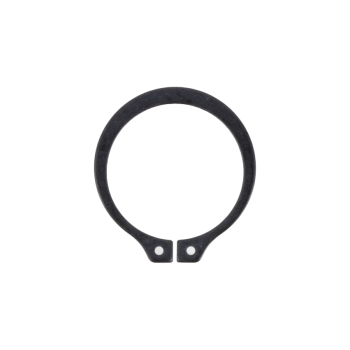

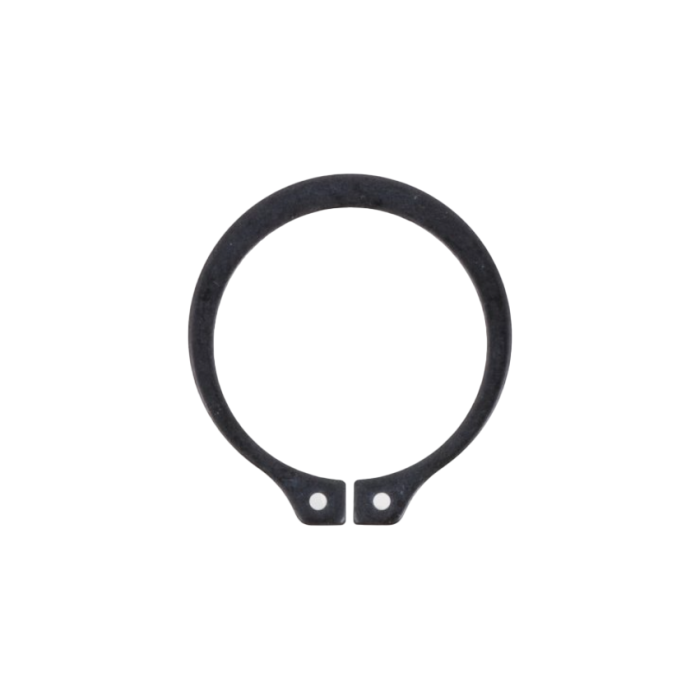

Part Number: BSH-068, Weight (lbs.): 0.00203, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Snap Rings Bowed External, Hardness: HR30N 66-71, Image: BSH-068.png, Country of Origin: USA, Groove Diameter: .646 in, Shaft Diameter: .688 in, Thickness: .042 in, Style: Stamped, Groove Width: .062 in, Allowable Corner Chamfers: .025 in, Allowable Corner Radii: .042 in, in Groove: .970 in, Distance Maximum: .060 in, Distance Minimum: .049 in, Edge Margin: .063 in, Free Diameter: .635 in, Groove Depth: .021 in, Groove Diameter to Shaft Concentricity: .004 in, Resilient Take Up of Tolerances: .011 in, Flat Force: 70 Pound-Force, Maximum Thrust Load: 1340 Pound-Force, Manufacturer Part Number: BSH-68ST PA, Free Diameter Tolerance: -0.5, Groove Diameter Tolerance: ±.003, Shaft Diameter Fraction: 11/16 in, Thickness Tolerance: ±.002, Hole Diameter: .052 in, Duty: Standard Duty, Bow Height: .073 in, Clearance Diameter Expanded Over Shaft: 1.010 in, Gaging Diameter Maximum: .779 in, Lug Height: .136 in, Maximum Section: .084 in, Minimum Section: .048 in, Maximum Section Tolerance: ±.005, Hole Diameter Tolerance: -5, Lug Height Tolerance: ±.004, Minimum Section Tolerance: ±.005, Bow Height Tolerance: ±.008
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Shaft Diameter | : | 0.688 in |
| Thickness | : | 0.042 in |
| Type | : | Snap Rings Bowed External |
