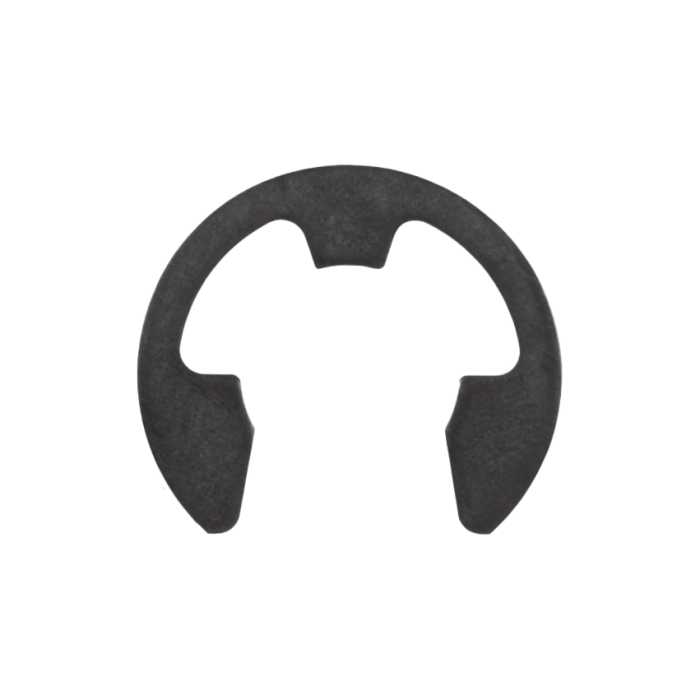

Part Number: BE-075, Weight (lbs.): 0.0058, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Bowed External E-Clips, Hardness: HRC 47-52, Image: BE-075.png, Country of Origin: USA, Groove Diameter: .580 in, Shaft Diameter: .750 in, Thickness: .050 in, Style: Stamped, Groove Width: .085 in, Allowable Corner Chamfers: .065 in, Allowable Corner Radii: .085 in, Bow Height Maximum: .110 in, Bow Height Minimum: .090 in, in Groove: 1.140 in, Clear Outside Diameter: 1.120 in, Distance Maximum: .085 in, Distance Minimum: .069 in, Edge Margin: .170 in, Free Diameter: .574 in, Groove Depth: .085 in, Groove Diameter to Shaft Concentricity: .004 in, Resilient Take Up of Tolerances: .016 in, Flat Force: 110 Pound-Force, Maximum Thrust Load: 2000 Pound-Force, Manufacturer Part Number: BE-75ST PA, Free Diameter Tolerance: -0.6, RPM Limits: 10500 10500 rpm, Shaft Diameter Fraction: 3/4 in, Thickness Tolerance: ±.002
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 1.12 in |
| Shaft Diameter | : | .750 in |
| Thickness | : | .050 in |
| Type | : | Bowed External E-Clips |
