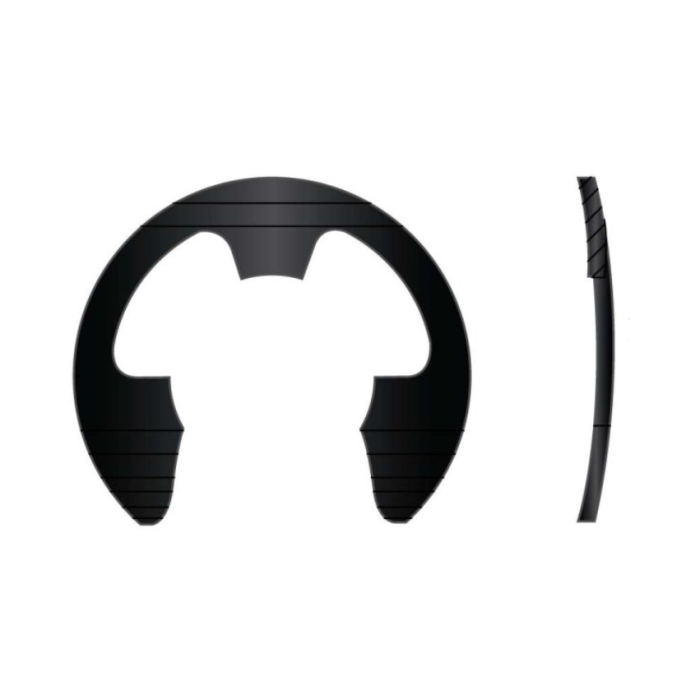

Part Number: BE-050, Weight (lbs.): 0.0025, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Bowed External E-Clips, Hardness: HRC 47-52, Image: BE-050.png, Country of Origin: USA, Groove Diameter: .396 in, Shaft Diameter: .500 in, Thickness: .042 in, Style: Stamped, Groove Width: .073 in, Allowable Corner Chamfers: .060 in, Allowable Corner Radii: .080 in, Bow Height Maximum: .093 in, Bow Height Minimum: .075 in, in Groove: .820 in, Clear Outside Diameter: .800 in, Distance Maximum: .070 in, Distance Minimum: .056 in, Edge Margin: .104 in, Free Diameter: .392 in, Groove Depth: .052 in, Groove Diameter to Shaft Concentricity: .004 in, Resilient Take Up of Tolerances: .014 in, Flat Force: 90 Pound-Force, Maximum Thrust Load: 1110 Pound-Force, Manufacturer Part Number: BE-50ST PA, Free Diameter Tolerance: -0.5, RPM Limits: 14000 14000 rpm, Shaft Diameter Fraction: 1/2 in, Thickness Tolerance: ±.002
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 0.8 in |
| Shaft Diameter | : | .500 in |
| Thickness | : | .042 in |
| Type | : | Bowed External E-Clips |
