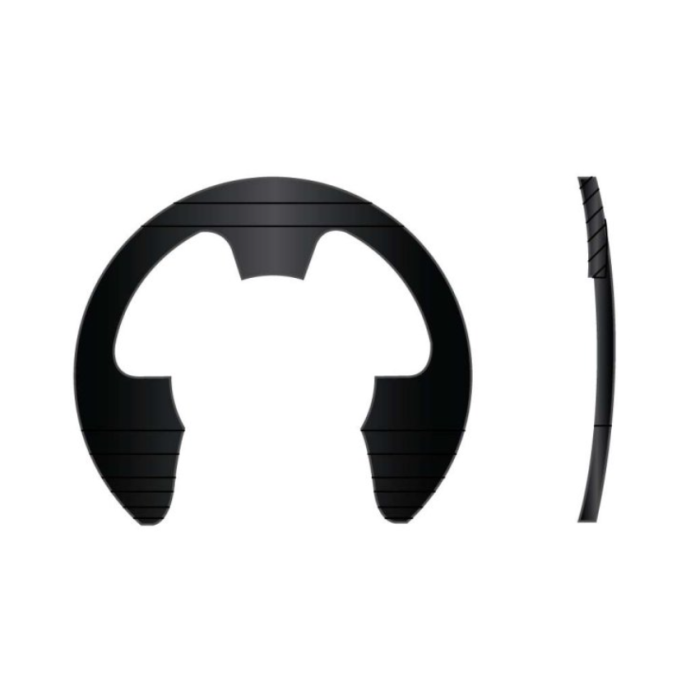

Part Number: BE-043, Weight (lbs.): 0.0015, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Bowed External E-Clips, Hardness: HRC 47-52, Image: BE-043.png, Country of Origin: USA, Groove Diameter: .343 in, Shaft Diameter: .438 in, Thickness: .035 in, Style: Stamped, Groove Width: .060 in, Allowable Corner Chamfers: .050 in, Allowable Corner Radii: .065 in, Bow Height Maximum: .076 in, Bow Height Minimum: .060 in, in Groove: .710 in, Clear Outside Diameter: .687 in, Distance Maximum: .055 in, Distance Minimum: .045 in, Edge Margin: .094 in, Free Diameter: .337 in, Groove Depth: .047 in, Groove Diameter to Shaft Concentricity: .004 in, Resilient Take Up of Tolerances: .010 in, Flat Force: 50 Pound-Force, Maximum Thrust Load: 830 Pound-Force, Manufacturer Part Number: BE-43ST PA, Free Diameter Tolerance: -0.5, RPM Limits: 16500 16500 rpm, Shaft Diameter Fraction: 7/16 in, Thickness Tolerance: ±.002
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 0.687 in |
| Shaft Diameter | : | .438 in |
| Thickness | : | .035 in |
| Type | : | Bowed External E-Clips |
