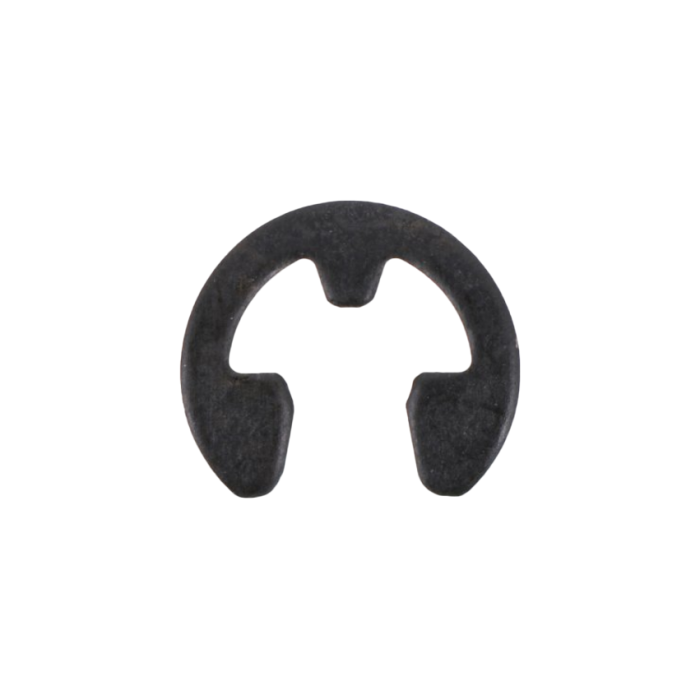

Part Number: BE-025, Weight (lbs.): 0.00076, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Bowed External E-Clips, Hardness: HR30N 66.5-71, Image: BE-025.png, Country of Origin: USA, Groove Diameter: .210 in, Shaft Diameter: .250 in, Thickness: .025 in, Style: Stamped, Groove Width: .047 in, Allowable Corner Chamfers: .045 in, Allowable Corner Radii: .060 in, Bow Height Maximum: .065 in, Bow Height Minimum: .050 in, in Groove: .540 in, Clear Outside Diameter: .527 in, Distance Maximum: .046 in, Distance Minimum: .036 in, Edge Margin: .040 in, Free Diameter: .207 in, Groove Depth: .020 in, Groove Diameter to Shaft Concentricity: .004 in, Resilient Take Up of Tolerances: .010 in, Flat Force: 35 Pound-Force, Maximum Thrust Load: 255 Pound-Force, Manufacturer Part Number: BE-25ST PA, Free Diameter Tolerance: -0.333333333333333, RPM Limits: 25000 25000 rpm, Shaft Diameter Fraction: 1/4 in, Thickness Tolerance: ±.002
| Finish | : | Phosphate |
| Material | : | Carbon Spring Steel |
| Outside Diameter | : | 0.527 in |
| Shaft Diameter | : | .250 in |
| Thickness | : | .025 in |
| Type | : | Bowed External E-Clips |
