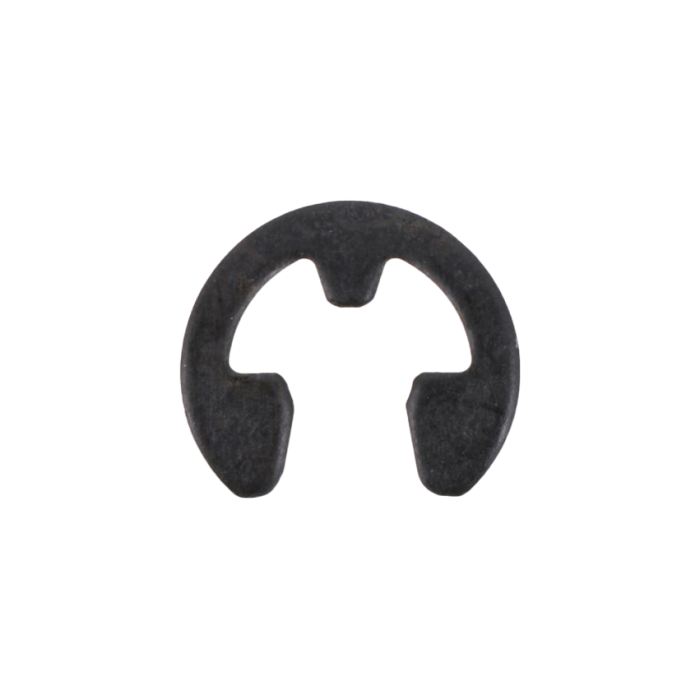

G.L.HUYETT™ BE-015 IRR1001-015

Part Number: BE-015, Weight (lbs.): 0.00013, RoHS Compliant: Yes, HTS Number: 7318240000, Inch or Metric: Inch, Finish: Phosphate, Material: Carbon Spring Steel, Type: Bowed External E-Clips, Hardness: HR15N 84.5-87, Image: BE-015.png, Country of Origin: USA, Groove Diameter: .116 in, Shaft Diameter: .156 in, Thickness: .015 in, Style: Stamped, Groove Width: .027 in, Allowable Corner Chamfers: .045 in, Allowable Corner Radii: .060 in, Bow Height Maximum: .040 in, Bow Height Minimum: .030 in, in Groove: .295 in, Clear Outside Diameter: .282 in, Distance Maximum: .027 in, Distance Minimum: .022 in, Edge Margin: .040 in, Free Diameter: .114 in, Groove Depth: .020 in, Groove Diameter to Shaft Concentricity: .002 in, Resilient Take Up of Tolerances: .005 in, Flat Force: 15 Pound-Force, Maximum Thrust Load: 80 Pound-Force, Manufacturer Part Number: BE-15ST PA, Free Diameter Tolerance: -0.333333333333333, RPM Limits: 31000 31000 rpm, Shaft Diameter Fraction: 5/32 in, Thickness Tolerance: ±.002
