FYH® UCP209 45MM FYHUCP209-45MM
  1. pin-int

FYH® UCP209 45MM FYHUCP209-45MM

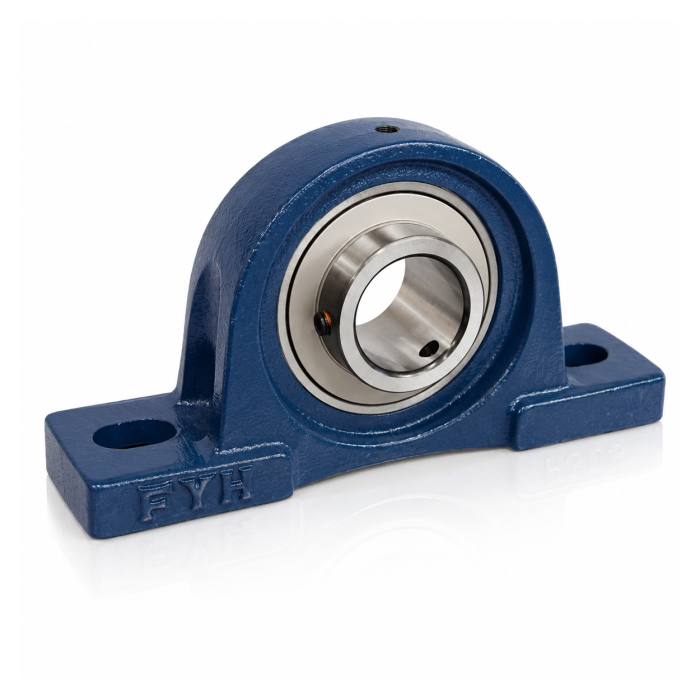

FYH® UCP209 45MM UCP Normal Duty Pillow Block Unit, 45 mm Dia Bore, 5-3/4 in L Bolt Center-to-Center, 2-1/8 in Base to Bore Centerline, 7-15/32 in OAL 4-3/16 in OAH

  • Manufacturer: FYH
  • Brand Name: FYH®
  • Part Number: FYHUCP209-45MM
  • MPN: UCP209 45MM
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading Available at EVANSVILLE, IN
  • loading Check Availability at All Branches

FYH®, UCP209 45MM, Pillow Block Unit, Normal Duty, Series: UCP, 45 mm Bore, 5-3/4 in Bolt Center-to-Center Length, 2-1/8 in Base to Bore Centerline, 7-15/32 in Overall Length, 2-1/8 in Overall Width, 4-3/16 in Overall Height, Cylindrical Bore, 2-1/8 in Base Width, Set Screw Locking Device, 34.1 kN Dynamic/21.3 kN Static Load, Cast Iron

Base Width      :      2-1/8 in
Base to Bore Centerline      :      2-1/8 in
Bolt Center-to-Center Length      :      5-3/4 in
Bore Diameter      :      45 mm
Bore Type      :      Cylindrical
Load Capacity      :      34.1 kN Dynamic/21.3 kN Static
Locking Device      :      Set Screw
Material      :      Cast Iron
Overall Height      :      4-3/16 in
Overall Length      :      7-15/32 in
Overall Width      :      2-1/8 in
Series      :      UCP
Type      :      Normal Duty
