FYH® UCFX08 24 FYHUCFX08-24

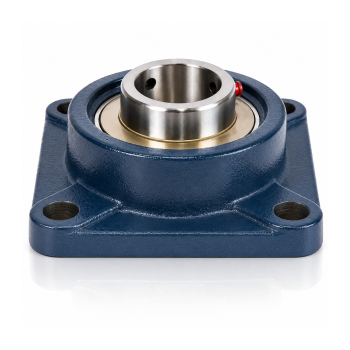

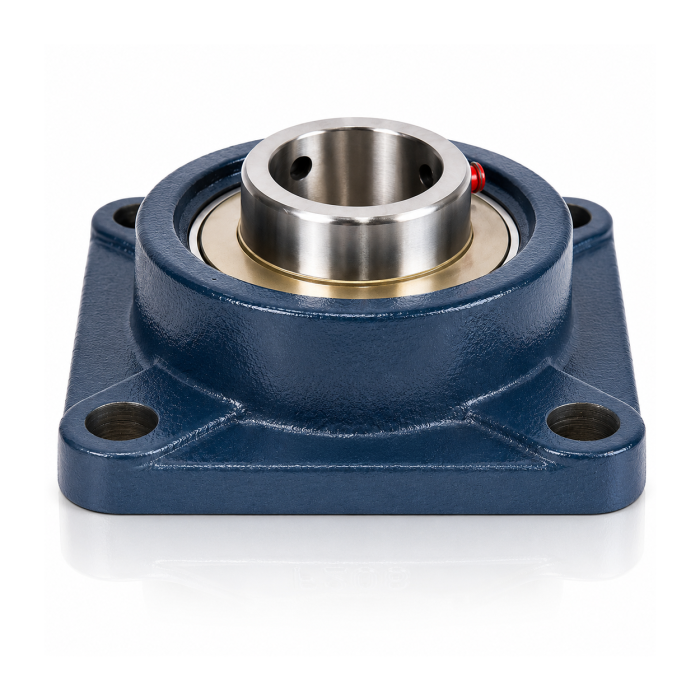

FYH® UCFX08 24 UCF Cylindrical Flange Mount Ball Bearing Unit, 1-1/2 in Dia Bore, 4-9/64 in L Bolt Center-to-Center, 3/4 in Dia Bolt Circle, 4-Bolt Flange Flange Mount, 5-13/32 in OAL/Dia
- Manufacturer: FYH
- Brand Name: FYH®
- Part Number: FYHUCFX08-24
- MPN: UCFX08 24
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FYH®, UCFX08 24, Flange Mount Ball Bearing Unit, Cylindrical, Series: UCF, 1-1/2 in Bore, 4-9/64 in Bolt Center-to-Center Length, 3/4 in Diameter Bolt Circle, 4-Bolt Flange Flange Mounting, 5-13/32 in Overall Length/Diameter, 2-1/16 in Overall Depth, Set Screw Locking Device, Cast Iron Bearing, 34.1 kN Dynamic/21.3 kN Static Load
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 4-9/64 in |
| Bolt Circle Diameter | : | 3/4 in |
| Bore Diameter | : | 1-1/2 in |
| Flange Mounting Type | : | 4-Bolt Flange |
| Load Capacity | : | 34.1 kN Dynamic/21.3 kN Static |
| Locking Device | : | Set Screw |
| Overall Depth | : | 2-1/16 in |
| Overall Length/Diameter | : | 5-13/32 in |
| Series | : | UCF |
| Type | : | Cylindrical |
