FYH® UCFL205 25MM FYHUCFL205-25MM

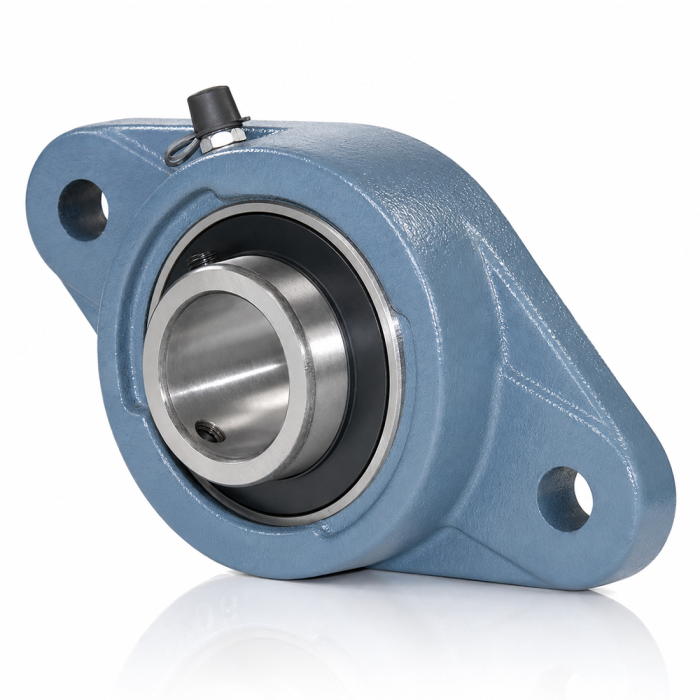

FYH® UCFL205 25MM UCFL Cylindrical Flange Mount Ball Bearing Unit, 25 mm Dia Bore, 3-57/64 in L Bolt Center-to-Center, 5/8 in Dia Bolt Circle, 2-Bolt Flange Flange Mount, 1-5/8 in OAL/Dia
- Manufacturer: FYH
- Brand Name: FYH®
- Part Number: FYHUCFL205-25MM
- MPN: UCFL205 25MM
- Min. Order Qty: 1
- Qty. Interval: 1
-
Available at EVANSVILLE, IN
-
Check Availability at All Branches
- Sold As: 1/EA
-
Price:
FYH®, UCFL205 25MM, Flange Mount Ball Bearing Unit, Cylindrical, Series: UCFL, 25 mm Bore, 3-57/64 in Bolt Center-to-Center Length, 5/8 in Diameter Bolt Circle, 2-Bolt Flange Flange Mounting, 1-5/8 in Overall Length/Diameter, 1-19/32 in Overall Depth, 2-11/16 in Overall Height, Set Screw Locking Device, Cast Iron Bearing, 14 kN Dynamic/7.85 kN Static Load
| Bearing Material | : | Cast Iron |
| Bolt Center-to-Center Length | : | 3-57/64 in |
| Bolt Circle Diameter | : | 5/8 in |
| Bore Diameter | : | 25 mm |
| Flange Mounting Type | : | 2-Bolt Flange |
| Load Capacity | : | 14 kN Dynamic/7.85 kN Static |
| Locking Device | : | Set Screw |
| Overall Depth | : | 1-19/32 in |
| Overall Height | : | 2-11/16 in |
| Overall Length/Diameter | : | 1-5/8 in |
| Series | : | UCFL |
| Type | : | Cylindrical |
