Formsprag Clutch® AL30 FORAL30

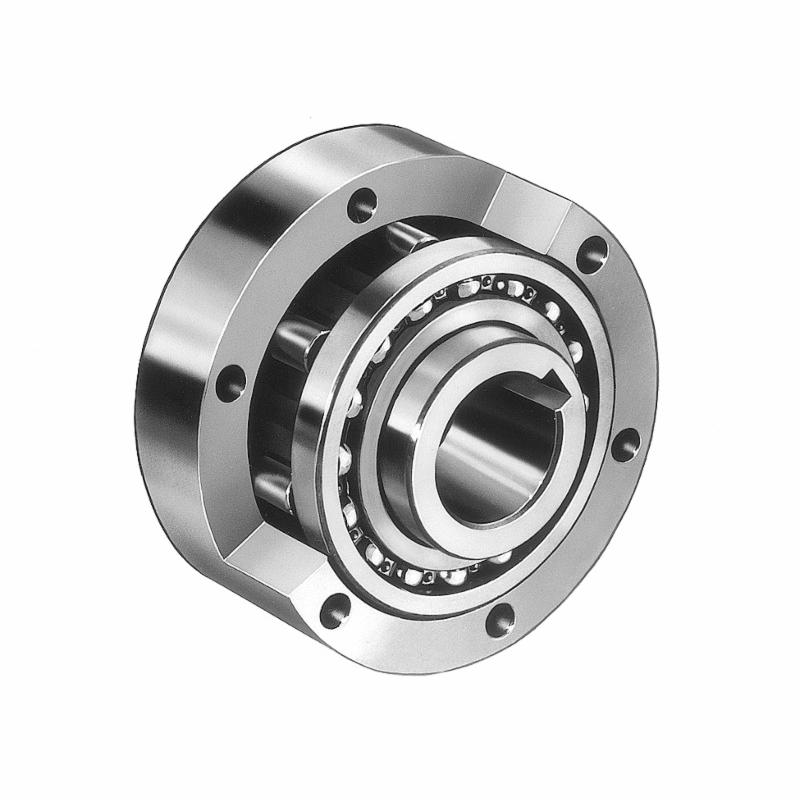

The model AL clutch assembled with the F2 and D2 covers provides a versatile clutch assembly. The F2 cover provides mounting holes countersunk from the outboard side which are used to secure and drive a gear or pulley mounted over the outer race. This mounting configuration provides the highest radial load capacity as the line of force from the gear or sprocket is located between the clutch bearings. The D2 cover encloses the other end of the clutch for through shaft mounting.

Formsprag Clutch® Ramp and Roller Clutch, Series: AL Series, 30 mm Bore, 100 mm OD, 68 mm Overall Length, 369 ft-lb Torque, 1700 rpm Inner/4100 rpm Outer Race Maximum, Vertical (Zero-U) Mounting

• Formsprag Clutch® recommends the use of our HPI series for indexing rates in excess of 150 strokes per minute or indexing angles in excess of 90 deg

• Specification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Formsprag_Clutch_AL100_Specification_Sheet.pdf
