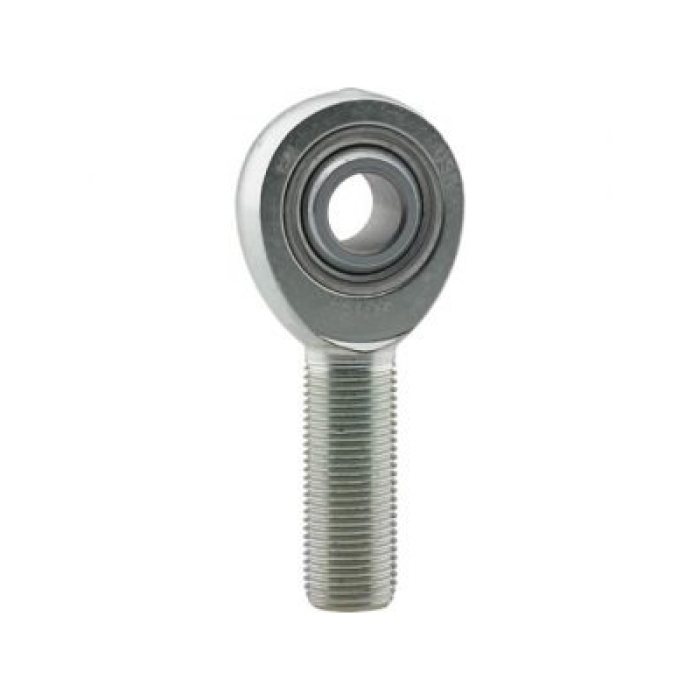

FK Bearings RSMX8 rod end bearing from the RSMX Heavy Duty Shank line. Designed for linkage and pivot applications requiring a spherical plain bearing in a threaded rod end housing. Specs: Bore: 0.5000 in; Thread: 5/8-18 UNF (Right Hand); Stud profile: Male; Construction: 3-piece; Style: Male rod end.
| Bore Diameter | : | 0.5 in |
| Center Line Length | : | 2.625 in |
| Finish | : | Zinc Plated (Chromate Treated) |
| Load Capacity | : | 31420 lbf |
| Material | : | Steel |
| Outside Diameter | : | 1.5 in |
| Rod End Size | : | 8 |
| Series | : | RSMX |
| Thread Size | : | 5/8-18 |
| Thread Type | : | Right Hand |
| Type | : | Rod End Bearing |
| Width | : | 0.625 in |
