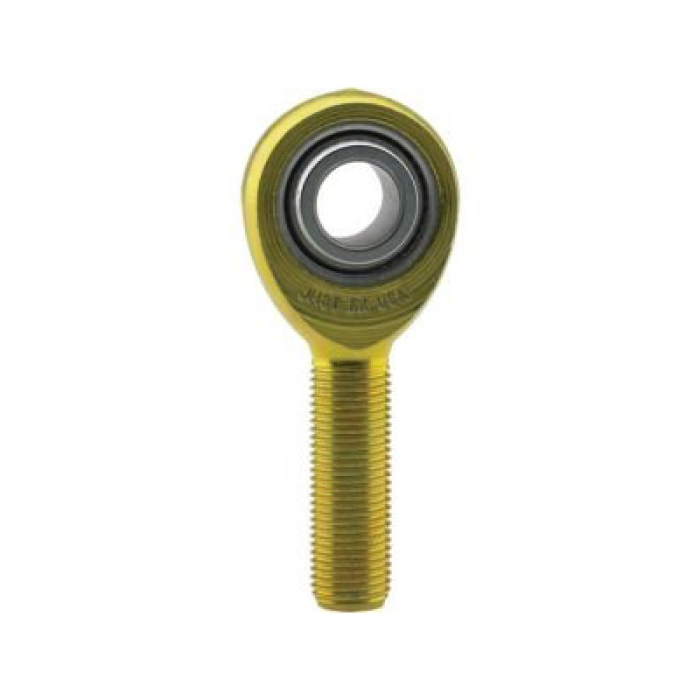

FK Bearings JM16-Z rod end bearing from the JM/JF Precision Series line. Designed for linkage and pivot applications requiring a spherical plain bearing in a threaded rod end housing. Specs: Bore: 1.0000 in; Thread: 1-1/4-12 UNF (Right Hand); Stud profile: Male; Construction: 3-piece; Style: Male rod end; Relubricatable: Yes (grease fitting).
| Bore Diameter | : | 1 in |
| Center Line Length | : | 4.5 in |
| Finish | : | Zinc Plated (Chromate Treated) |
| Load Capacity | : | 43555 lbf |
| Material | : | Steel |
| Outside Diameter | : | 2.95 in |
| Rod End Size | : | 16 |
| Series | : | JM/JF |
| Thread Size | : | 1-1/4-12 |
| Thread Type | : | Right Hand |
| Type | : | Rod End Bearing |
| Width | : | 1.375 in |
