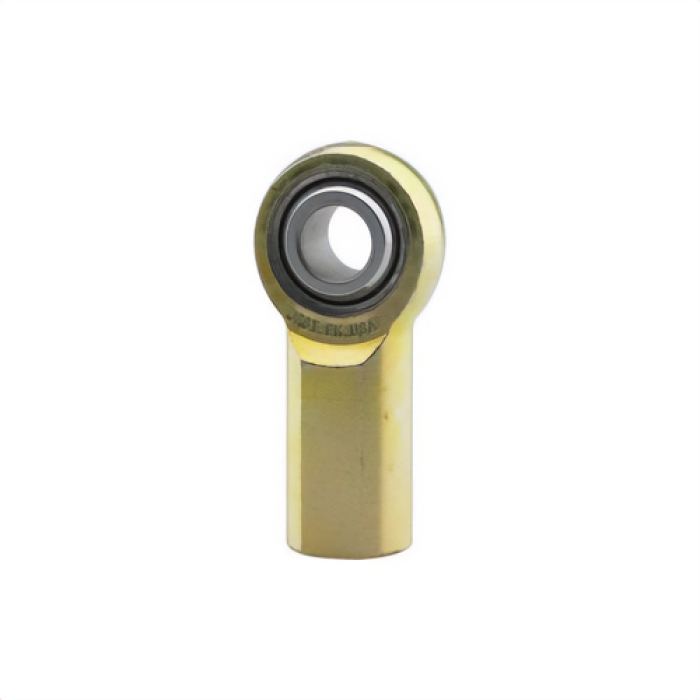

The JF Series Rod End is a premium-quality component designed for robust performance in various mechanical applications. It features a durable 3-piece construction that ensures reliability and long service life. The ball is made from 52100 steel, heat treated to a minimum hardness of Rc 56, and is hard chrome plated for enhanced corrosion resistance and smooth operation.The body of the rod end is constructed from low carbon steel, which is zinc plated and chromate treated for added protection against wear and environmental elements. The race is made from heat-treated alloy steel, also chromate treated, ensuring optimal strength and durability in demanding conditions.This rod end series offers versatility with optional PTFE liners and studs, providing flexibility based on specific application needs. For those requiring lubrication, an optional lubrication fitting is available, enhancing maintenance capabilities. However, grease fittings and PTFE liners are not included as standard features. The product is available in clear zinc only, with tolerance variations for “D” and “A” dimensions of +/- .020.Ideal for applications requiring a high-performance rod end, the FK Bearings JF Series delivers reliability and precision in a wide range of industrial settings.
Precision 3-piece rod end bearing. Female threaded, right hand thread direction. Bore: 1 in. Thread: 1-14. Static radial load: 43,555 lbf. Options: with grease zerk.
| Bore Diameter | : | 1 in |
| Bore Diameter | : | 1 in |
| Center Line Length | : | 4.125 in |
| Finish | : | Zinc Plated (Chromate Treated) |
| Load Capacity | : | 43555 lbf |
| Material | : | Steel |
| Outside Diameter | : | 2.75 in |
| Outside Diameter | : | 2-3/4 in |
| Rod End Size | : | 16 |
| Series | : | JM/JF |
| Thread Size | : | 1-14 |
| Thread Type | : | Right Hand |
| Type | : | Rod End Bearing |
| Width | : | 1.375 in |
- 3-Piece construction
- Female rod end
- Thread direction: Right Hand
- Bore: 1 in
- Thread size: 1-14
- Grease zerk fitting
