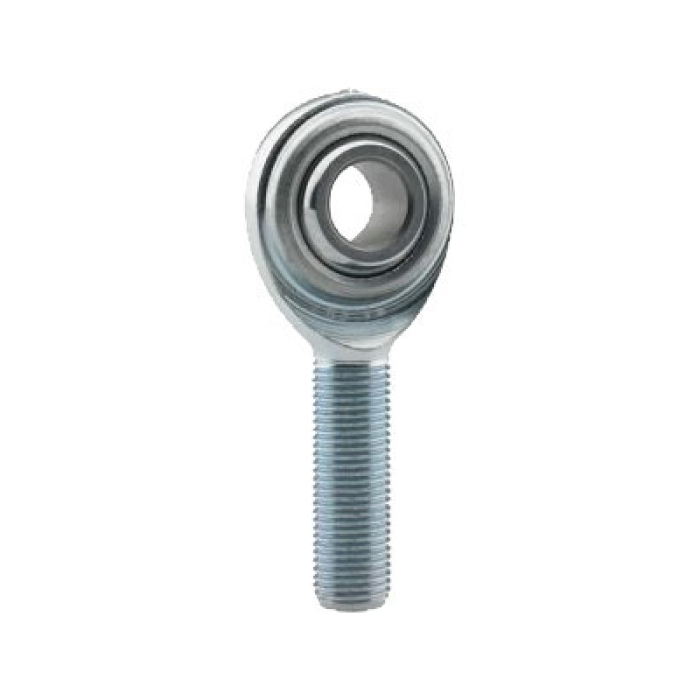

FK Bearings CM6M rod end bearing (CM-M Metric Series). Used in linkage and pivot applications requiring a spherical plain bearing in a threaded rod end housing. Specs: Bore: 6 mm bore; Thread: M6x1.0 (Right Hand); Stud profile: Male; Static radial load: 7296 N.
| Bore Diameter | : | 6 mm |
| Center Line Length | : | 36 mm |
| Finish | : | Zinc Plated (Chromate Treated) |
| Load Capacity | : | 1640 lbf |
| Material | : | Steel |
| Outside Diameter | : | 19 mm |
| Rod End Size | : | 6 |
| Series | : | CM-M/CF-M |
| Thread Size | : | M6x1.0 |
| Thread Type | : | Right Hand |
| Type | : | Rod End Bearing |
| Width | : | 9 mm |
