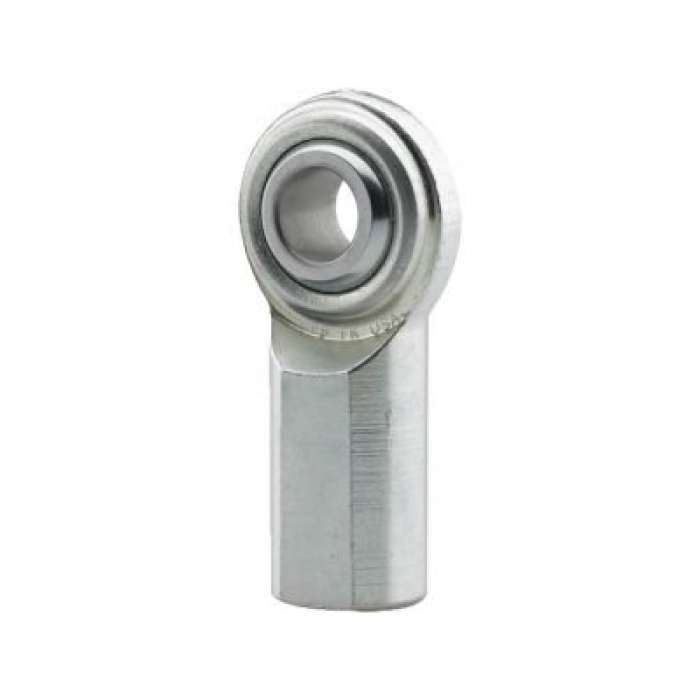

FK Bearings CF10-Y rod end bearing from the CM/CF Series line. Designed for linkage and pivot applications requiring a spherical plain bearing in a threaded rod end housing. Specs: Bore: 0.6250 in; Thread: 5/8-18 UNF (Right Hand); Stud profile: Female; Construction: 2-piece; Style: Metal-to-metal; Studded: Yes (with stud).
| Bore Diameter | : | 0.625 in |
| Center Line Length | : | 2.5 in |
| Finish | : | Zinc Plated (Chromate Treated) |
| Load Capacity | : | 9800 lbf |
| Material | : | Steel |
| Outside Diameter | : | 1.5 in |
| Rod End Size | : | 10 |
| Series | : | CM/CF |
| Thread Size | : | 5/8-18 |
| Thread Type | : | Right Hand |
| Type | : | Rod End Bearing |
| Width | : | 0.75 in |
