Fenner Drives TTQM1626 FENTTQM1626

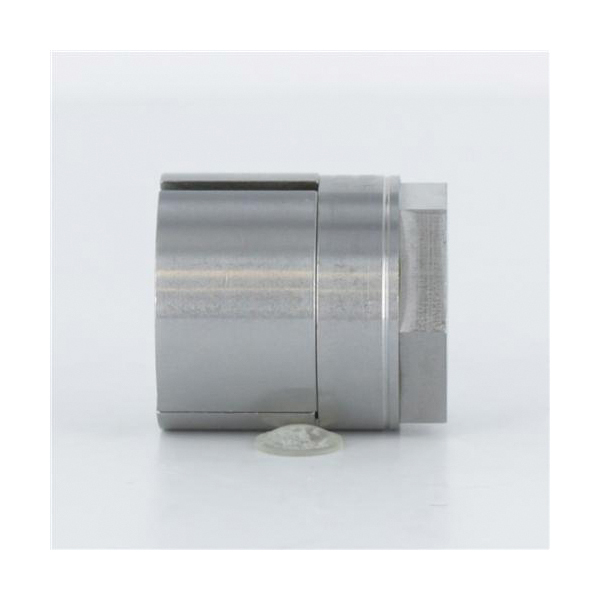

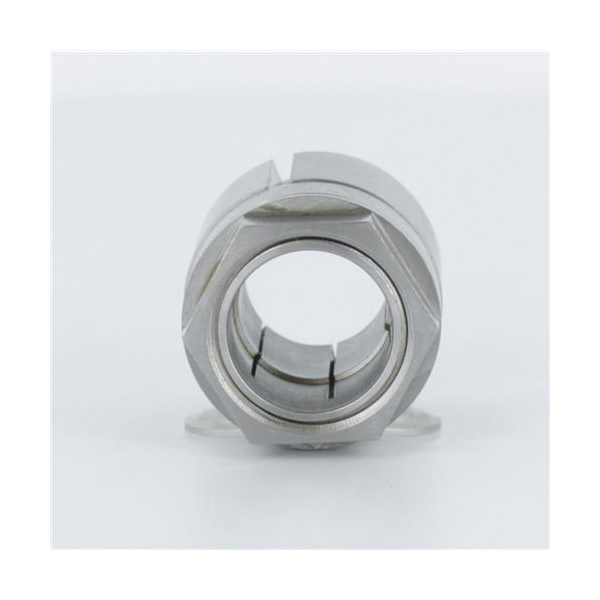

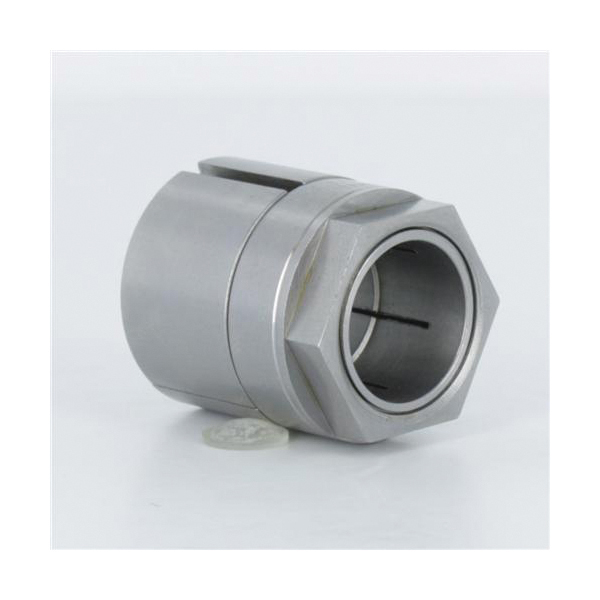

Fenner Drives® Trantorque® TTQM1626 Mini Keyless Bushing, 16 mm Dia Bore, 26 mm OD, 37.3 mm Dia Hub, 26 mm OAL, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives
- Part Number: FENTTQM1626
- MPN: TTQM1626
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Trantorque® Mini series 16 mm keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 16 mm in diameter by means of a mounted mechanical interference fit and transmits up to 140 N-m of torque.
Fenner Drives® Trantorque® Mini Keyless Bushing, 16 mm Bore, 26 mm OD, 37.3 mm Diameter Hub, 155 N-m Transmissible Torque, 18 kN Transmissible Thrust, 140 N/sq-mm Hub Contact, 26 mm Overall Length, Steel
| Bore Diameter | : | 16 mm |
| Hub Contact Pressure | : | 140 N/sq-mm |
| Hub Diameter | : | 37.3 mm |
| Material | : | Steel |
| Outside Diameter | : | 26 mm |
| Overall Length | : | 26 mm |
| Transmissible Thrust | : | 18 kN |
| Transmissible Torque | : | 155 N-m |
- Ability to transmit higher torques than keyed connections
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for small shaft applications where speed and simplicity of installation and repositioning are critical
