Fenner Drives TTQM0920 FENTTQM0920

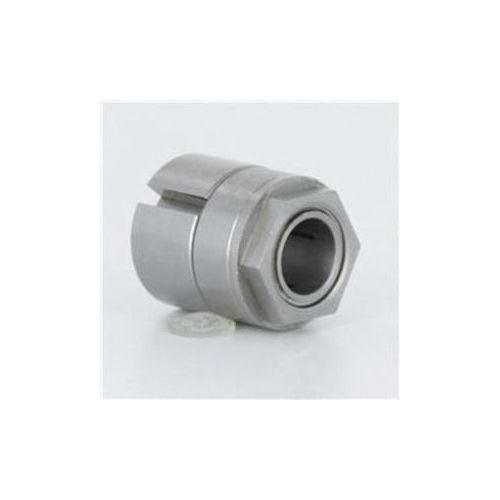

Fenner Drives® Trantorque® TTQM0920 Mini Single Taper Keyless Bushing, 9 mm Dia Bore, 20 mm OD, 22 mm OAL, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives
- Part Number: FENTTQM0920
- MPN: TTQM0920
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The Trantorque® mini series 9 mm keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 9 mm in Dia by means of a mounted mechanical interference fit and transmits up to 47 N-m of torque. Trantorque® mini series 9 mm keyless bushings provide a zero-backlash frictional connection that will never wear or pound out and can accommodate high-torque, thrust, bending and/or radial loads. This product has exceptional concentricity and the ability to accommodate bending loads. The Trantorque® mini series has limited axial movement during installation. All Trantorque® units use a single hex nut for speed and simplicity of installation.
Fenner Drives® Trantorque® Keyless Bushing, Single Taper, Series: Mini, 9 mm Bore Dia, 20 mm Outside Dia, 51 N-m Transmissible Torque, 11 kN Transmissible Thrust, 136 N/sq-mm Hub Contact Pressure, 22 mm Overall Length, Steel
| Bore Diameter | : | 9 mm |
| Hub Contact Pressure | : | 136 N/sq-mm |
| Material | : | Steel |
| Outside Diameter | : | 20 mm |
| Overall Length | : | 22 mm |
| Series | : | Mini |
| Transmissible Thrust | : | 11 kN |
| Transmissible Torque | : | 51 N-m |
| Type | : | Single Taper |
- Exceptional concentricity and ability to accommodate bending loads
- Limited axial movement during installation
- All Trantorque® units use a single hex nut for speed and simplicity of installation
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
Instruction/Installation Manual
