Fenner Drives® TTQM0820 FENTTQM0820

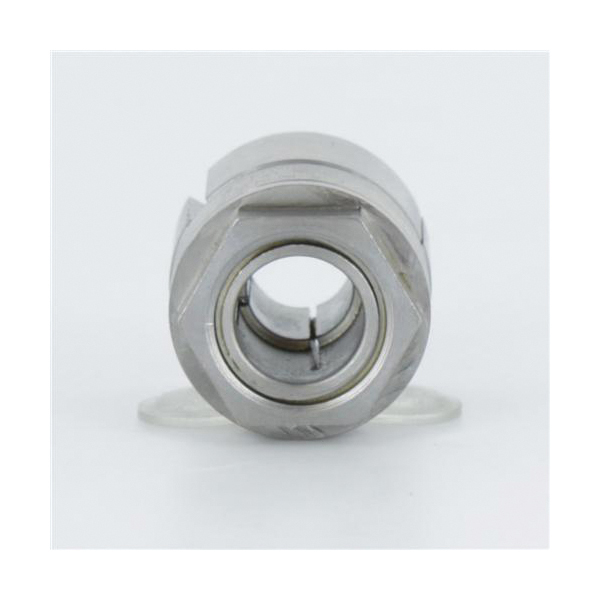

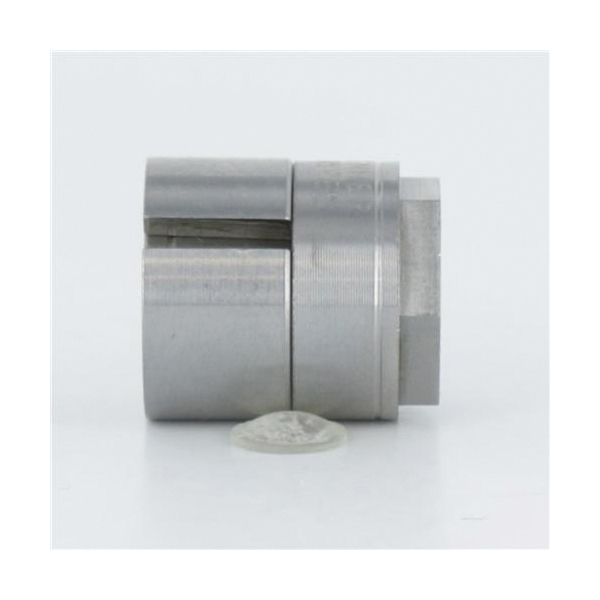

Fenner Drives® Trantorque® TTQM0820 Mini Keyless Bushing, 8 mm Dia Bore, 20 mm OD, 30 mm Dia Hub, 20 mm OAL, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives®
- Part Number: FENTTQM0820
- MPN: TTQM0820
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Trantorque® Mini series 8 mm keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 8 mm in diameter by means of a mounted mechanical interference fit and transmits up to 41 N-m of torque.
Fenner Drives® Trantorque® Mini Keyless Bushing, 8 mm Bore, 20 mm OD, 30 mm Diameter Hub, 46 N-m Transmissible Torque, 10 kN Transmissible Thrust, 123 N/sq-mm Hub Contact, 20 mm Overall Length, Steel
| Bore Diameter | : | 8 mm |
| Hub Contact Pressure | : | 123 N/sq-mm |
| Hub Diameter | : | 30 mm |
| Material | : | Steel |
| Outside Diameter | : | 20 mm |
| Overall Length | : | 20 mm |
| Transmissible Thrust | : | 10 kN |
| Transmissible Torque | : | 46 N-m |
- Ability to transmit higher torques than keyed connections
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for small shaft applications where speed and simplicity of installation and repositioning are critical
