Fenner Drives® TTQM0316 FENTTQM0316

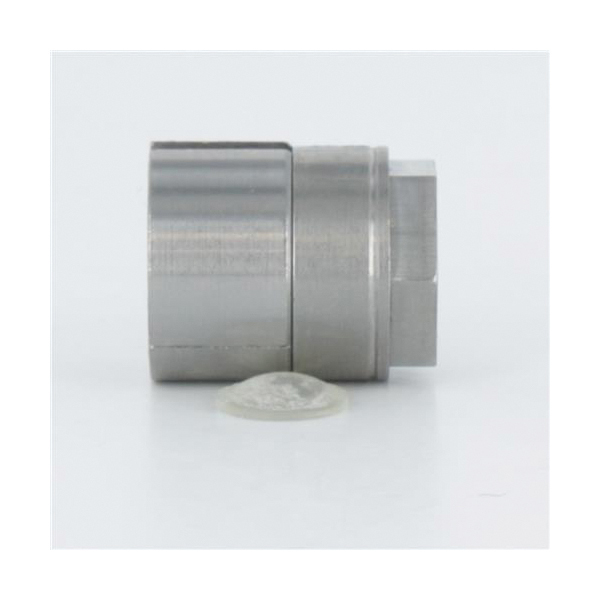

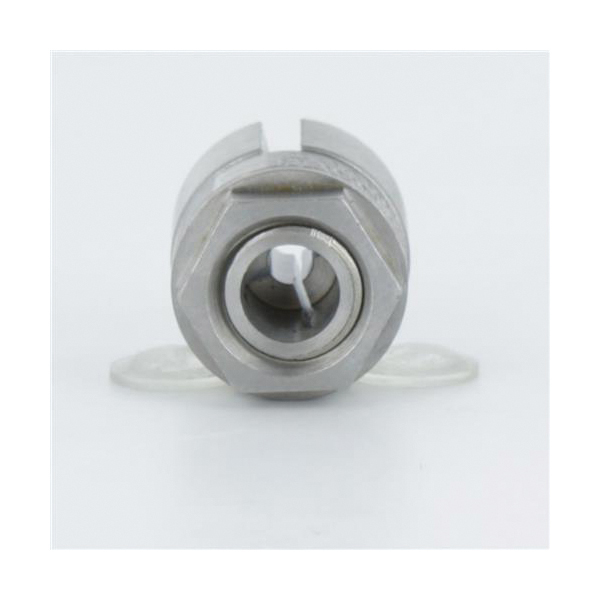

Fenner Drives® Trantorque® TTQM0316 Mini Keyless Bushing, 3 mm Dia Bore, 16 mm OD, 20.3 mm Dia Hub, 16 mm OAL, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives®
- Part Number: FENTTQM0316
- MPN: TTQM0316
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Trantorque® Mini series 3 mm keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 3 mm in diameter by means of a mounted mechanical interference fit and transmits up to 10 N-m of torque.
Fenner Drives® Trantorque® Mini Keyless Bushing, 3 mm Bore, 16 mm OD, 20.3 mm Diameter Hub, 11 N-m Transmissible Torque, 6 kN Transmissible Thrust, 112 N/sq-mm Hub Contact, 16 mm Overall Length, Steel
| Bore Diameter | : | 3 mm |
| Hub Contact Pressure | : | 112 N/sq-mm |
| Hub Diameter | : | 20.3 mm |
| Material | : | Steel |
| Outside Diameter | : | 16 mm |
| Overall Length | : | 16 mm |
| Transmissible Thrust | : | 6 kN |
| Transmissible Torque | : | 11 N-m |
- Ability to transmit higher torques than keyed connections
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for small shaft applications where speed and simplicity of installation and repositioning are critical
