Fenner Drives® 6202940UP FEN6202940UP

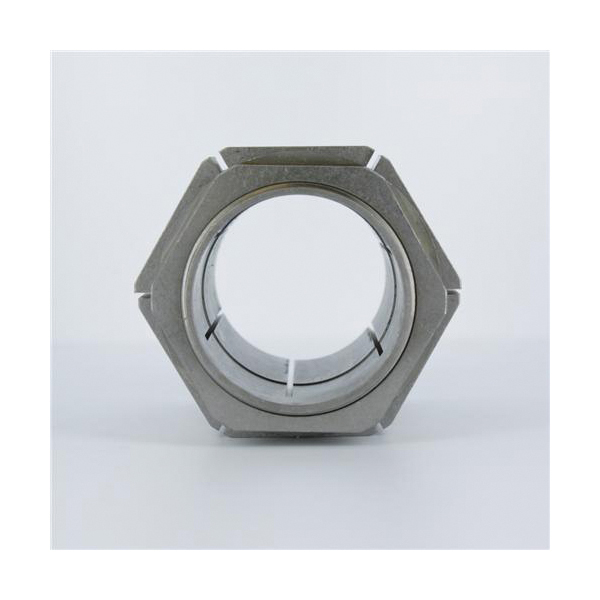

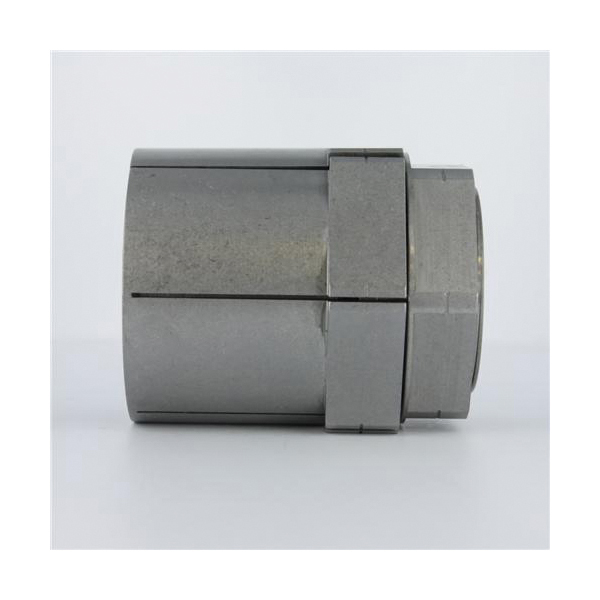

Fenner Drives® Trantorque® 6202940UP GT Series Keyless Bushing, 75 mm Dia Bore, 100 mm OD, 108 mm OAL, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives®
- Part Number: FEN6202940UP
- MPN: 6202940UP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Trantorque® GT series 75 mm keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 75 mm in diameter by means of a mechanical interference fit and transmits up to a maximum 1939 N-m of torque.
Fenner Drives® Trantorque® Keyless Bushing, Series: GT Series, 75 mm Bore Dia, 100 mm Outside Dia, 1939 N-m Transmissible Torque, 52 kN Transmissible Thrust, 21 N/sq-mm Hub Contact Pressure, 108 mm Overall Length, -30 to 400 deg F, Steel, Zinc Chromate/Zinc Phosphate
| Bore Diameter | : | 75 mm |
| Finish | : | Zinc Chromate/Zinc Phosphate |
| Hub Contact Pressure | : | 21 N/sq-mm |
| Material | : | Steel |
| Outside Diameter | : | 100 mm |
| Overall Length | : | 108 mm |
| Series | : | GT Series |
| Temperature Rating | : | -30 to 400 deg F |
| Transmissible Thrust | : | 52 kN |
| Transmissible Torque | : | 1939 N-m |
- Ability to transmit higher torques than keyed connections
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications where speed and simplicity of installation and repositioning are critical and will benefit from the value added feature of a counter torque nut
Instruction/Installation Manual
