Fenner Drives® 6202582UP FEN6202582UP

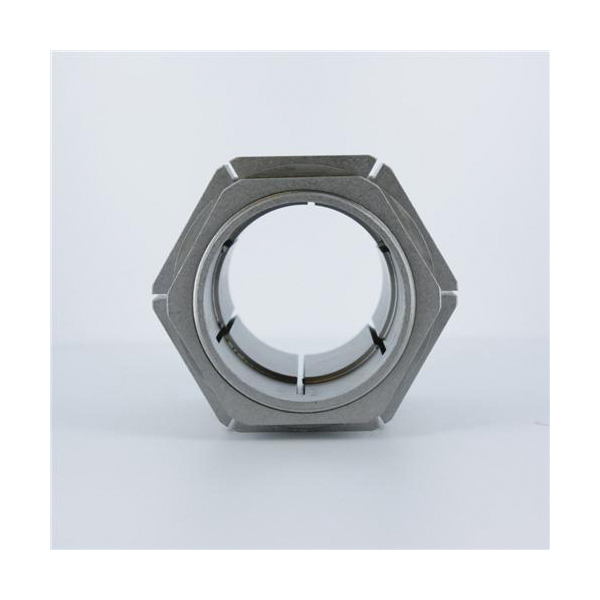

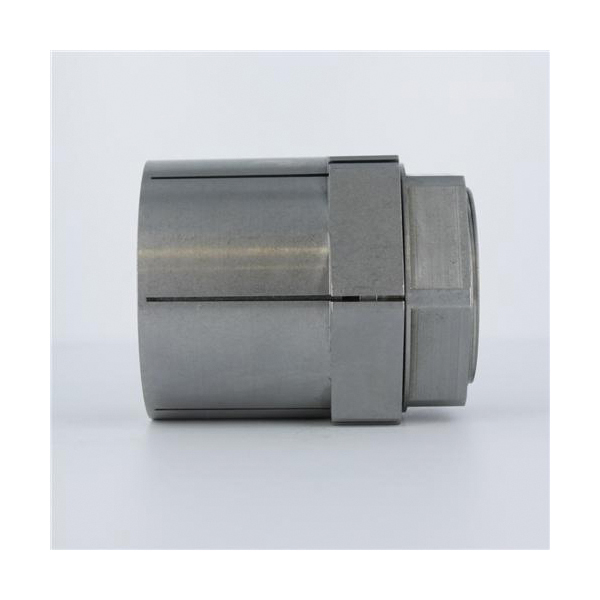

Fenner Drives® Trantorque® 6202582UP GT Series Keyless Bushing, 2-5/8 in Dia Bore, 3-5/8 in OD, 4-1/16 in OAL, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives®
- Part Number: FEN6202582UP
- MPN: 6202582UP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Trantorque® GT series 2-5/8 in keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 2-5/8 in in diameter by means of a mechanical interference fit and transmits up to a maximum 1237 ft-lb of torque.
Fenner Drives® Trantorque® Keyless Bushing, Series: GT Series, 2-5/8 in Bore Dia, 3-5/8 in Outside Dia, 1237 ft-lb Transmissible Torque, 11306 lb Transmissible Thrust, 3313 psi Hub Contact Pressure, 4-1/16 in Overall Length, -30 to 400 deg F, Steel, Zinc Chromate/Zinc Phosphate
| Bore Diameter | : | 2-5/8 in |
| Finish | : | Zinc Chromate/Zinc Phosphate |
| Hub Contact Pressure | : | 3313 psi |
| Material | : | Steel |
| Outside Diameter | : | 3-5/8 in |
| Overall Length | : | 4-1/16 in |
| Series | : | GT Series |
| Temperature Rating | : | -30 to 400 deg F |
| Transmissible Thrust | : | 11306 lb |
| Transmissible Torque | : | 1237 ft-lb |
- Ability to transmit higher torques than keyed connections
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications where speed and simplicity of installation and repositioning are critical and will benefit from the value added feature of a counter torque nut
Instruction/Installation Manual
