Fenner Drives 6202576UP FEN6202576UP

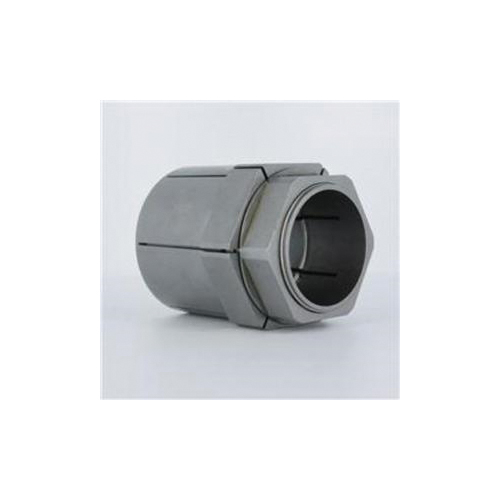

Fenner Drives® Trantorque® 6202576UP GT Series Single Taper Keyless Bushing, 2-1/2 in Dia Bore, 3-3/8 in OD, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives
- Part Number: FEN6202576UP
- MPN: 6202576UP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
The Trantorque® GT series 2-1/2 in keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 2-1/2 in Dia by means of a mechanical interference fit and transmits up to a maximum 1191 lb-ft of torque.
Fenner Drives® Trantorque® Keyless Bushing, Single Taper, Series: GT Series, 2-1/2 in Bore Dia, 3-3/8 in Outside Dia, 1277 ft-lb Transmissible Torque, 12260 lb Transmissible Thrust, 4064 psi Hub Contact Pressure, 3-7/8 in Overall Length, Steel
| Bore Diameter | : | 2-1/2 in |
| Hub Contact Pressure | : | 4064 psi |
| Material | : | Steel |
| Outside Diameter | : | 3-3/8 in |
| Overall Length | : | 3-7/8 in |
| Series | : | GT Series |
| Transmissible Thrust | : | 12260 lb |
| Transmissible Torque | : | 1277 ft-lb |
| Type | : | Single Taper |
- Designed with external counter-torque flange
- Exceptional concentricity and ability to accommodate bending loads
- Limited axial movement during installation
- All Trantorque® units use a single hex nut for speed and simplicity of installation
- Ability to transmit higher torques
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
Instruction/Installation Manual
