Fenner Drives 6202480UP FEN6202480UP

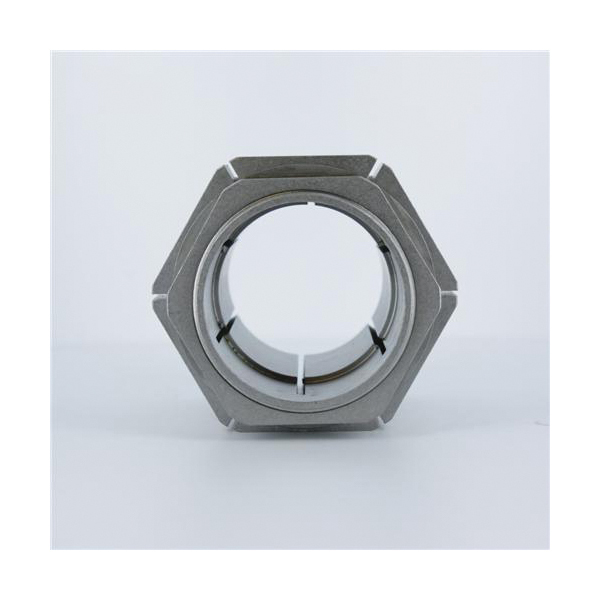

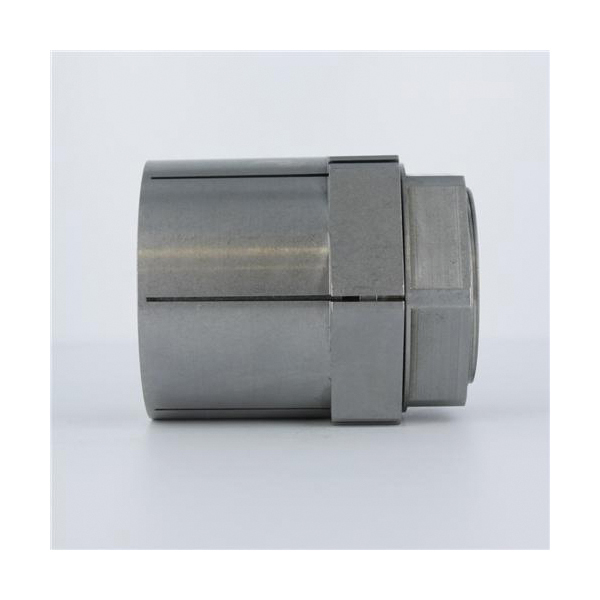

Fenner Drives® Trantorque® 6202480UP GT Series Keyless Bushing, 1-3/4 in Dia Bore, 2-5/8 in OD, 3-1/8 in OAL, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives
- Part Number: FEN6202480UP
- MPN: 6202480UP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The Trantorque® GT series 1-3/4 in keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 1-3/4 in in diameter by means of a mechanical interference fit and transmits up to a maximum 559 ft-lb of torque.
Fenner Drives® Trantorque® Keyless Bushing, Series: GT Series, 1-3/4 in Bore, 2-5/8 in OD, 599 ft-lb Transmissible Torque, 7663 lb Transmissible Thrust, 4287 psi Hub Contact, 3-1/8 in Overall Length, -30 to 400 deg F, Steel, Zinc Chromate/Zinc Phosphate
| Bore Diameter | : | 1-3/4 in |
| Finish | : | Zinc Chromate/Zinc Phosphate |
| Hub Contact Pressure | : | 4287 psi |
| Material | : | Steel |
| Outside Diameter | : | 2-5/8 in |
| Overall Length | : | 3-1/8 in |
| Series | : | GT Series |
| Temperature Rating | : | -30 to 400 deg F |
| Transmissible Thrust | : | 7663 lb |
| Transmissible Torque | : | 599 ft-lb |
- Ability to transmit higher torques than keyed connections
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications where speed and simplicity of installation and repositioning are critical and will benefit from the value added feature of a counter torque nut
Instruction/Installation Manual
