Fenner Drives 6202300UP FEN6202300UP

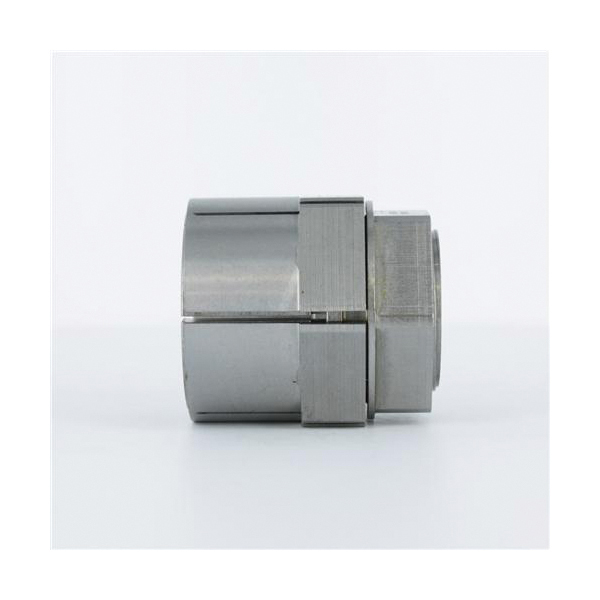

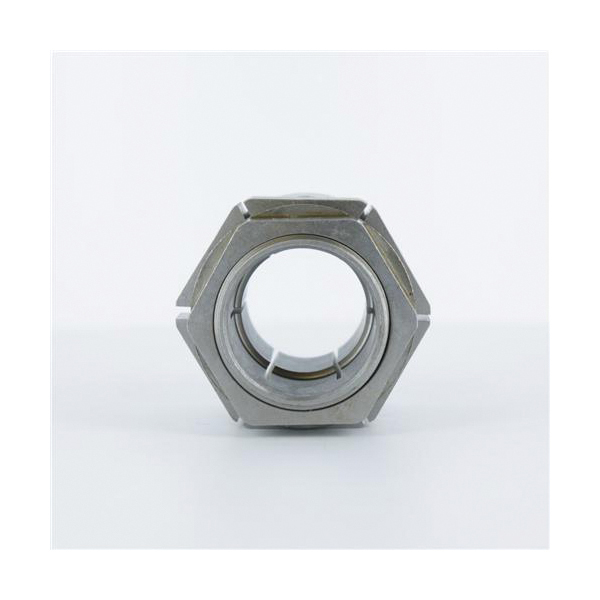

Fenner Drives® Trantorque® 6202300UP GT Series Keyless Bushing, 1-3/16 in Dia Bore, 2 in OD, 2-1/4 in OAL, Steel
- Manufacturer: Fenner Drives
- Brand Name: Fenner Drives
- Part Number: FEN6202300UP
- MPN: 6202300UP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
The Trantorque® GT series 1-3/16 in keyless bushing provides a high capacity, zero-backlash shaft/hub or coupling connection of mounted components to shafts measuring 1-3/16 in in diameter by means of a mechanical interference fit and transmits up to a maximum 347 ft-lb of torque.
Fenner Drives® Trantorque® Keyless Bushing, Series: GT Series, 1-3/16 in Bore, 2 in OD, 372 ft-lb Transmissible Torque, 7014 lb Transmissible Thrust, 14001 psi Shaft Contact Pressure, 8313 psi Hub Contact, 2-1/4 in Overall Length, -30 to 400 deg F, Steel, Zinc Chromate/Zinc Phosphate
| Bore Diameter | : | 1-3/16 in |
| Finish | : | Zinc Chromate/Zinc Phosphate |
| Hub Contact Pressure | : | 8313 psi |
| Material | : | Steel |
| Outside Diameter | : | 2 in |
| Overall Length | : | 2-1/4 in |
| Series | : | GT Series |
| Shaft Contact Pressure | : | 14001 psi |
| Temperature Rating | : | -30 to 400 deg F |
| Transmissible Thrust | : | 7014 lb |
| Transmissible Torque | : | 372 ft-lb |
- Ability to transmit higher torques than keyed connections
- True zero-backlash
- Less equipment downtime
- Ability to mount over existing keyways
- Complete axial and radial adjustability
- Simple installation, adjustment and removal
- Best suited for applications where speed and simplicity of installation and repositioning are critical and will benefit from the value added feature of a counter torque nut
