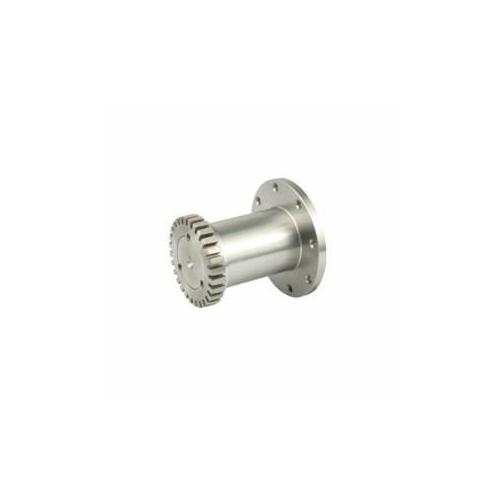

FALK® 10026963 FAL0744104
FALK® Steelflex® 010026963 Spacer Grid Coupling Hub, 1080T Coupling, 1.062 to 3-1/2 in Dia Bore, 3-1/2 in Shaft Hub/3-1/2 in T-Hub Length Through Bore, 4.81 in Shaft Hub/4.12 in T-Hub Dia Hub, Steel
- Manufacturer: Regal Rexnord
- Brand Name: FALK®
- Part Number: FAL0744104
- Alt Part Number: 744104
- MPN: 10026963
- UPC: 782934004735
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Spacer Hubs for T31:T35 Series-Spacer Couplings. The Steelflex® spacer hubs are the individual hubs used to span the DBSE in spacer style couplings.
FALK® Steelflex® Grid Coupling Hub, Spacer, 1080T Coupling, 1.062 to 3-1/2 in Bore Dia, 4.81 in Shaft Hub/4.12 in T-Hub Hub Dia, 3-1/2 in Shaft Hub/3-1/2 in T-Hub Hub Length, 3600 rpm Maximum, 3-1/2 in Shaft Hub/3-1/2 in T-Hub Length Through Bore, Steel
| Bore Diameter | : | 1.062 to 3-1/2 in |
| Coupling Size | : | 1080T |
| Hub Diameter | : | 4.81 in Shaft Hub/4.12 in T-Hub |
| Hub Length | : | 3-1/2 in Shaft Hub/3-1/2 in T-Hub |
| Length Through Bore | : | 3-1/2 in Shaft Hub/3-1/2 in T-Hub |
| Material | : | Steel |
| Maximum Speed | : | 3600 rpm |
| Type | : | Spacer |
