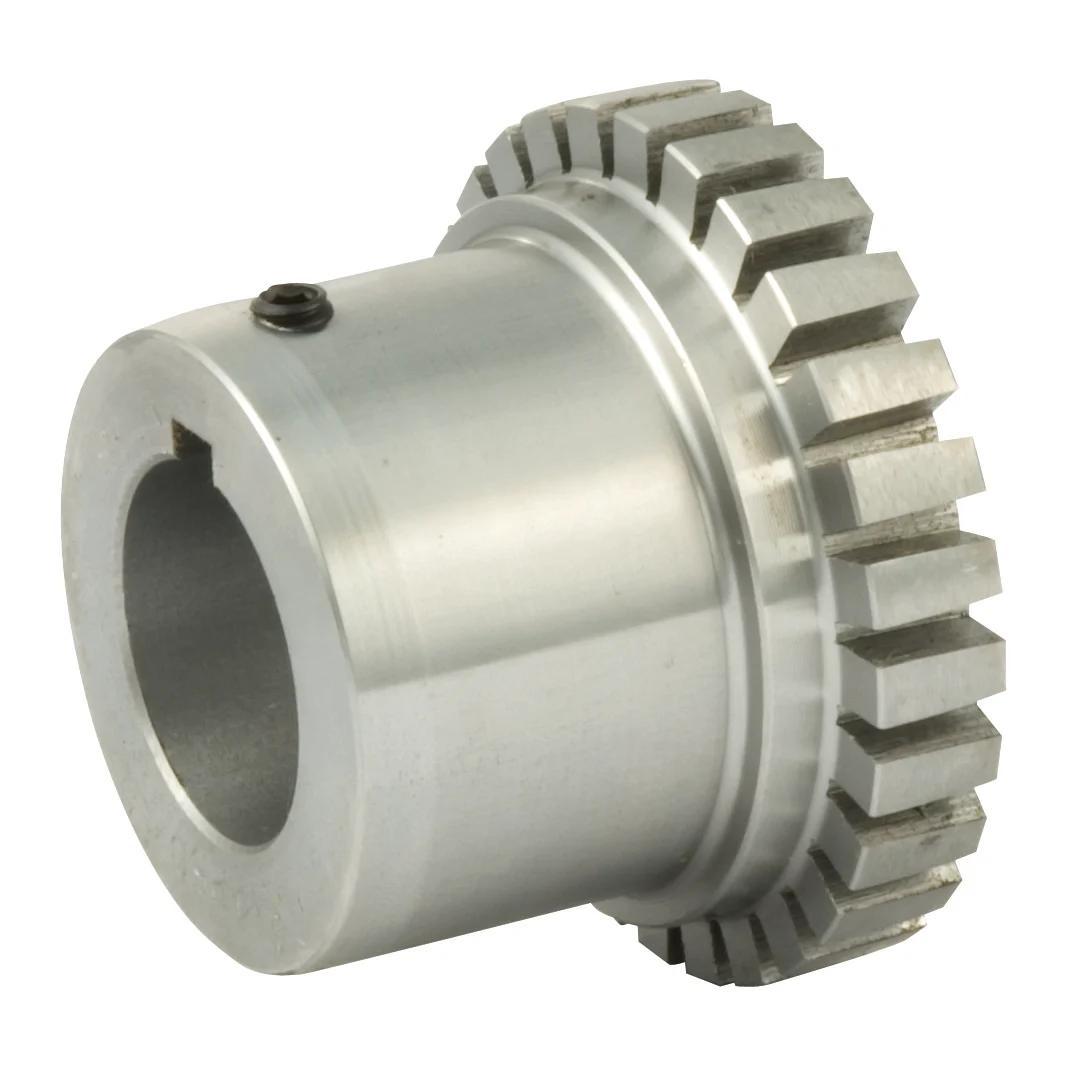

FALK® 10010816 FAL0704626
FALK® Steelflex® 010010816 Stock Bore Grid Coupling Hub, 1060T Coupling, 1-3/8 in Dia Bore, 2-1/2 in Length Through Bore, 3 in Dia Hub, Steel
- Manufacturer: Regal Rexnord
- Brand Name: FALK®
- Part Number: FAL0704626
- Alt Part Number: 704626
- MPN: 10010816
- UPC: 782934002311
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Stock Hubs for T10:T20 Series-Close Coupled Double-Flexing Couplings. The Steelflex® T-Hub design is the common hub used in T10 and T20 close coupled couplings as well as other configurations. Hubs are available in RSB-Rough Stock Bore (usually solid hub) for boring by others, stock bores and custom bores.
FALK® Steelflex® Grid Coupling Hub, Stock Bore, 1060T Coupling, 1-3/8 in Bore Dia, 3 in Hub Dia, 2-1/2 in Hub Length, 5/16 x 0.1563 in Keyway, 4350/6000 rpm Maximum, 2-1/2 in Length Through Bore, Steel
| Bore Diameter | : | 1-3/8 in |
| Coupling Size | : | 1060T |
| Hub Diameter | : | 3 in |
| Hub Length | : | 2-1/2 in |
| Keyway Size | : | 5/16 x 0.1563 in |
| Length Through Bore | : | 2-1/2 in |
| Material | : | Steel |
| Maximum Speed | : | 4350/6000 rpm |
| Type | : | Stock Bore |
- Falk T10_T20 Series Standard Hubs size(s) 1060T with a 3.000 in outside barrel diameter and 2.50 in length for grid couplings
