FALK® 0794700 FAL0794702

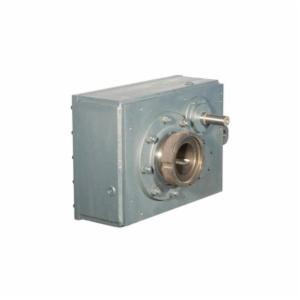

FALK® Quadrive® 0794700 5000 J-Unit Gear Drive, Solid Shaft Input, Tapered Bushing Output, 25:1 Gear, 70 rpm Maximum Output
- Manufacturer: Regal Rexnord
- Brand Name: FALK®
- Part Number: FAL0794702
- Alt Part Number: 10615498
- MPN: 0794700
- UPC: 782934983276
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Rexnord® is a leading manufacturer of shaft mount gear drives for the heavy-duty industrial market. Our shaft mount gear drives feature rugged designs to meet every operating challenge, and they're site proven in the world's most demanding applications. Rexnord® shaft mount gear drives are application-engineered to minimize stress and wear and extend service life.
FALK® Quadrive® Gear Drive, J-Unit, Series: 5000, 25:1 Gear Ratio, Solid Shaft Input, Tapered Bushing Output, 2-1/2 in Input, 4-15/16 in Output, 70 rpm Output Maximum Speed, 8.02 in Centre Distance, Shaft/Horizontal Mount, Steel, 18.86 in L x 23.24 in W x 25.26 in H
| Centre Distance | : | 8.02 in |
| Dimensions | : | 18.86 in L x 23.24 in W x 25.26 in H |
| Gear Ratio | : | 25:1 |
| Input Size | : | 2-1/2 in |
| Input Type | : | Solid Shaft |
| Material | : | Steel |
| Mounting Type | : | Shaft/Horizontal |
| Output Maximum Speed | : | 70 rpm |
| Output Size | : | 4-15/16 in |
| Output Type | : | Tapered Bushing |
| Series | : | 5000 |
| Type | : | J-Unit |
- Torque Assist (TA) taper bushing guarantees lifetime removal
- Provides large overhung and thrust load capacities
- Helical design with high hardness, surface-finished teeth and wider face
- Shaft mounted parallel helical gear drive
- Model A drives
