FAG NU2232-E-XL-M1-C3 FAGNU2232EXLM1C3

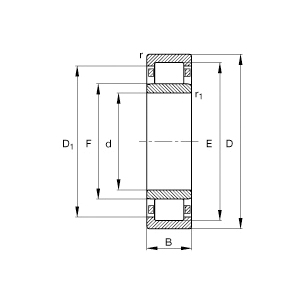

FAG NU2232-E-XL-M1-C3 NU22..-E Separable Cylindrical Roller Bearing With Cage, 160 mm Dia Bore, 290 mm OD, 1 Row, 80 mm W, 940000 N Dynamic/1170000 N Static Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAGNU2232EXLM1C3
- Alt Part Number: NU2232-E-M1-C3
- MPN: NU2232-E-XL-M1-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Cylindrical Roller Bearing, Separable, Series: NU22..-E, 160 mm Bore Dia, 290 mm Outside Dia, 1 Row, 80 mm W, Open Closure, 940000 N Dynamic/1170000 N Static, Brass Cage, 3600 rpm Maximum, -30 to 150 deg C, Uncoated
| Bore Diameter | : | 160 mm |
| Cage Material | : | Brass |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 940000 N Dynamic/1170000 N Static |
| Maximum Speed | : | 3600 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 290 mm |
| Series | : | NU22..-E |
| Temperature Rating | : | -30 to 150 deg C |
| Type | : | Separable |
| Width | : | 80 mm |
- Radial internal clearance larger than normal
- Solid brass cage, two-piece and roller-guided
- Increased capacity design
