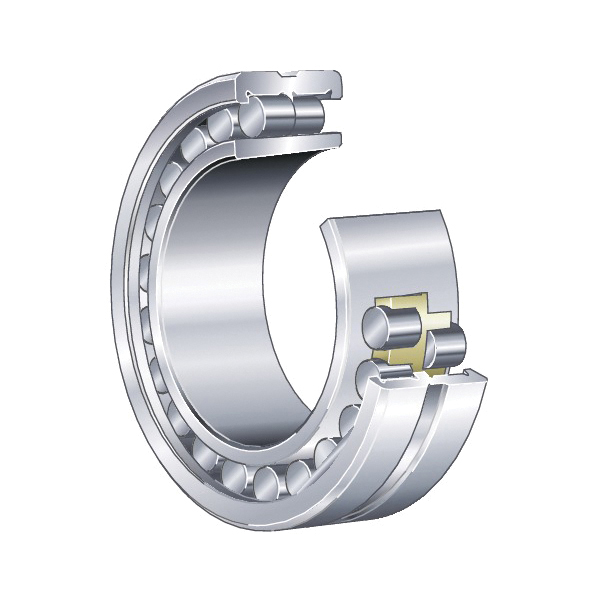

FAG NN3034-AS-M-SP FAGNN3034ASMSP
FAG NN3034-AS-M-SP Medium Series High Precision Cylindrical Roller Bearing, 170 mm Dia Bore, 260 mm OD, 2 Rows, 67 mm W, 800000 N Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAGNN3034ASMSP
- MPN: NN3034-AS-M-SP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG high precision cylindrical roller bearings are used where very high accuracy is required, typical areas of application for these bearings include machine tools and printing machinery. They are ideal as non-locating bearings since they allow unconstrained compensation of changes in length during rotational movement between the rollers and raceways.
FAG Cylindrical Roller Bearing, High Precision, Series: Medium Series, 170 mm Bore, 260 mm OD, 2 Rows, 67 mm Width, Open Closure, 800000 N Load, Brass Cage, 3100 rpm Grease/3650 rpm Oil Maximum, 60 deg C
| Bore Diameter | : | 170 mm |
| Cage Material | : | Brass |
| Closure Type | : | Open |
| Load Capacity | : | 800000 N |
| Maximum Speed | : | 3100 rpm Grease/3650 rpm Oil |
| Number of Rows | : | 2 |
| Outside Diameter | : | 260 mm |
| Series | : | Medium Series |
| Temperature Rating | : | 60 deg C |
| Type | : | High Precision |
| Width | : | 67 mm |
- High radial rigidity
- High load carrying capacity
- High accuracy
- Reduced radial internal clearance, restricted tolerances
- Non-locating bearing, separable
- 450000 N dynamic/800000 N static
- Modified internal construction
- Ribs on inner ring and outer ring ribless
- Lubrication holes and lubrication
- Brass cage guided by rollers
- Special precision accuracy
