FAG NJ2314-E-XL-TVP2-C3 FAGNJ2314EXLTVP2C3

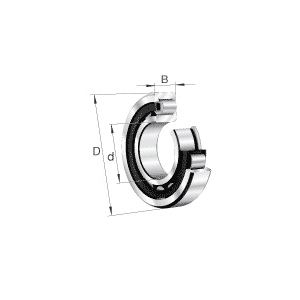

FAG NJ2314-E-XL-TVP2-C3 NJ23..-E Separable Outer Ring Cylindrical Roller Bearing With Cage, 70 mm Dia Bore, 150 mm OD, 1 Row, 51 mm W, 325000 N Dynamic/325000 N Static/59000 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAGNJ2314EXLTVP2C3
- Alt Part Number: NJ2314-E-TVP2-C3
- MPN: NJ2314-E-XL-TVP2-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Cylindrical Roller Bearing, Separable Outer Ring, Series: NJ23..-E, 70 mm Bore Dia, 150 mm Outside Dia, 1 Row, 51 mm W, Open Closure, 325000 N Dynamic/325000 N Static/59000 N Fatigue, Polyamide 66 Cage, 5500 rpm Maximum, -30 to 120 deg C, Uncoated
| Bore Diameter | : | 70 mm |
| Cage Material | : | Polyamide 66 |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 325000 N Dynamic/325000 N Static/59000 N Fatigue |
| Maximum Speed | : | 5500 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 150 mm |
| Series | : | NJ23..-E |
| Temperature Rating | : | -30 to 120 deg C |
| Type | : | Separable Outer Ring |
| Width | : | 51 mm |
- Semi-locating bearing
Specification Sheet
