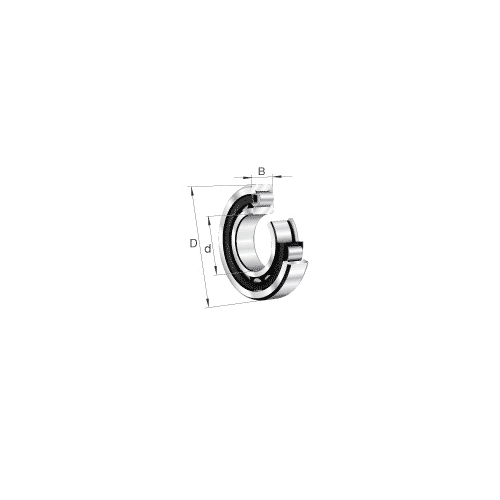

FAG NJ215-E-XL-TVP2-C3 FAGNJ215EXLTVP2C3
FAG NJ215-E-XL-TVP2-C3 NJ2..-E Separable Outer Ring Cylindrical Roller Bearing With Cage, 75 mm Dia Bore, 130 mm OD, 1 Row, 25 mm W, 155000 N Dynamic/157000 N Static/27500 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAGNJ215EXLTVP2C3
- Alt Part Number: NJ215-E-TVP2-C3
- MPN: NJ215-E-XL-TVP2-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Cylindrical Roller Bearing, Separable Outer Ring, Series: NJ2..-E, 75 mm Bore Dia, 130 mm Outside Dia, 1 Row, 25 mm W, Open Closure, 155000 N Dynamic/157000 N Static/27500 N Fatigue, Polyamide 66 Cage, 6500 rpm Maximum, -30 to 120 deg C, Uncoated
| Bore Diameter | : | 75 mm |
| Cage Material | : | Polyamide 66 |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 155000 N Dynamic/157000 N Static/27500 N Fatigue |
| Maximum Speed | : | 6500 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 130 mm |
| Series | : | NJ2..-E |
| Temperature Rating | : | -30 to 120 deg C |
| Type | : | Separable Outer Ring |
| Width | : | 25 mm |
- Semi-locating bearing
Specification Sheet
