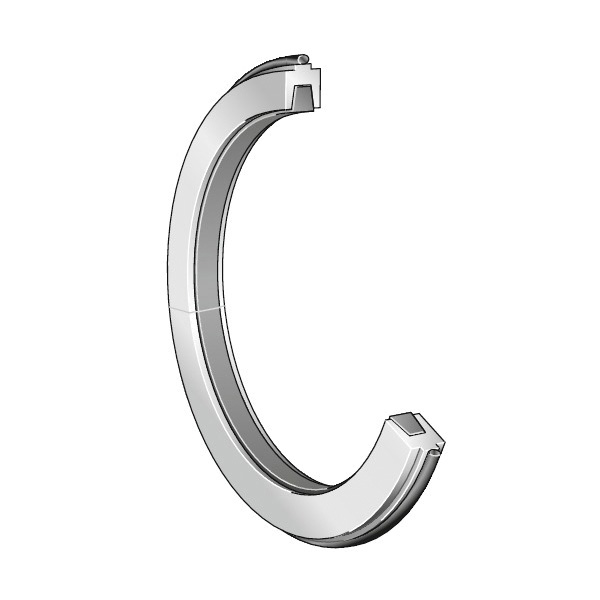

FAG LERS148X0607-N FAGLERS148X0607-N

Labyrinth seals LER, contact-free sealing is achieved. They are therefore suitable for high speeds. The O-ring made from NBR that is pressed in between the labyrinth ring and shaft is suitable for temperatures up to 100 deg C. Labyrinth seals allow shaft misalignment of up to 0.3 deg in both directions and are suitable for grease lubrication. If necessary, the labyrinth can be relubricated. For this purpose, a lubrication hole must be made in the upper housing section for each labyrinth seal. The optimum positions are indicated by cast-in pilot holes on the top of the housing. Labyrinth seals for standard shaft diameters are included in the scope of delivery of a housing of universal design. Labyrinth seals for shaft diameters other than standard must be ordered separately.

FAG Labyrinth Seal, Series: LER, 163.513 mm ID, 186.055 mm OD, 25.4 mm Width, 0.3 deg Misalignment, 100 deg C, Non-Metallic
