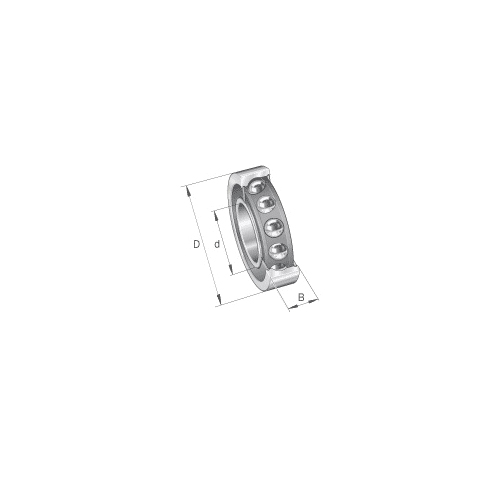

FAG 7008-B-XL-2RS-TVP FAG7008BXL2RSTVP
FAG X-Life 7008-B-XL-2RS-TVP 70..-B-2RS Angular Contact Ball Bearing, 40 mm Dia Bore, 68 mm OD, 1 Rows, 15 mm W, 40 deg, 28000 N Dynamic/20300 N Static/1370 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG7008BXL2RSTVP
- Alt Part Number: 7008-B-2RS-TVP
- MPN: 7008-B-XL-2RS-TVP
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
Single row angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies with polyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.
FAG X-Life Angular Contact Ball Bearing, Series: 70..-B-2RS, 40 mm Bore, 68 mm OD, 1 Rows, 15 mm Width, 40 deg Contact Angle, Double Seal Closure, 28000 N Dynamic/20300 N Static/1370 N Fatigue Load, Steel Bearing, Polyamide Cage, 5200 rpm Maximum, 120 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 40 mm |
| Cage Material | : | Polyamide |
| Closure Type | : | Double Seal |
| Contact Angle | : | 40 deg |
| Load Capacity | : | 28000 N Dynamic/20300 N Static/1370 N Fatigue |
| Maximum Speed | : | 5200 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 68 mm |
| Series | : | 70..-B-2RS |
| Temperature Rating | : | 120 deg C |
| Width | : | 15 mm |
- Modified internal construction
- Lip seals on both sides
- Solid cage made from glass fiber reinforced polyamide
Specification Sheet
