FAG 6407-C3 FAG6407C3
  1. pin-int

FAG 6407-C3 FAG6407C3

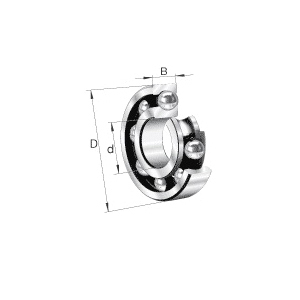

FAG 6407-C3 64 Series Deep Groove Ball Bearing, 35 mm Dia Bore, 100 mm OD, 1 Row, 25 mm W, 56000 N Dynamic/31500 N Static/2180 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6407C3
  • MPN: 6407-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG Deep Groove Ball Bearing, Series: 64 Series, 35 mm Bore Dia, 100 mm Outside Dia, 1 Row, 25 mm W, Open Closure, 56000 N Dynamic/31500 N Static/2180 N Fatigue, Steel Bearing, Steel Cage, 9500 rpm Maximum, 120 deg C, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      35 mm
Cage Material      :      Steel
Closure Type      :      Open
Finish      :      Uncoated
Load Capacity      :      56000 N Dynamic/31500 N Static/2180 N Fatigue
Maximum Speed      :      9500 rpm
Number of Rows      :      1
Outside Diameter      :      100 mm
Series      :      64 Series
Temperature Rating      :      120 deg C
Width      :      25 mm
  • C3 radial internal clearance
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6407_C3_Specification_Sheet.pdf
