FAG 6319-2RSR-C3 FAG6319-2RSC3
  1. pin-int

FAG 6319-2RSR-C3 FAG6319-2RSC3

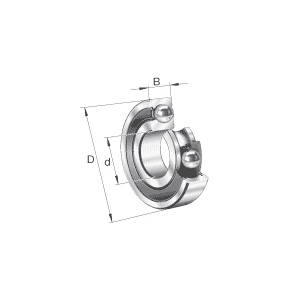

FAG 6319-2RSR-C3 63..-2RSR Deep Groove Ball Bearing, 95 mm Dia Bore, 200 mm OD, 1 Rows, 45 mm W, 154000 N Dynamic/113000 N Static/6400 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6319-2RSC3
  • MPN: 6319-2RSR-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG Deep Groove Ball Bearing, Series: 63..-2RSR, 95 mm Bore, 200 mm OD, 1 Rows, 45 mm Width, Double Seal Closure, 154000 N Dynamic/113000 N Static/6400 N Fatigue Load, Buna-N Seal, Steel Cage, 2080 rpm Maximum, -30 to 110 deg C

Bore Diameter      :      95 mm
Cage Material      :      Steel
Closure Type      :      Double Seal
Load Capacity      :      154000 N Dynamic/113000 N Static/6400 N Fatigue
Maximum Speed      :      2080 rpm
Number of Rows      :      1
Outside Diameter      :      200 mm
Seal Material      :      Buna-N
Series      :      63..-2RSR
Temperature Rating      :      -30 to 110 deg C
Width      :      45 mm
  • Lip seals on both sides
  • C3 radial internal clearance
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6000_C_2HRS_L038_C3_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6319_2RSR_C3_Specification_Sheet.pdf
