FAG 6307-2Z-L038-C3 FAG6307-2ZC3

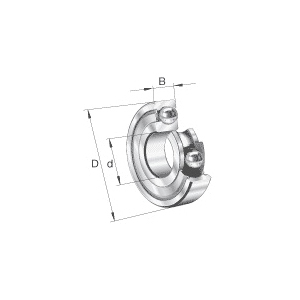

FAG 6307-2Z-L038-C3 63..-2Z Deep Groove Ball Bearing, 35 mm Dia Bore, 80 mm OD, 1 Rows, 21 mm W, 35500 N Dynamic/19200 N Static/1290 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG6307-2ZC3
- MPN: 6307-2Z-L038-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/PK
-
Price:
FAG Deep Groove Ball Bearing, Series: 63..-2Z, 35 mm Bore, 80 mm OD, 1 Rows, 21 mm Width, Double Shield Closure, 35500 N Dynamic/19200 N Static/1290 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 10400 rpm Maximum, -30 to 120 deg C, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 35 mm |
| Cage Material | : | Steel |
| Closure Type | : | Double Shield |
| Finish | : | Uncoated |
| Load Capacity | : | 35500 N Dynamic/19200 N Static/1290 N Fatigue |
| Maximum Speed | : | 10400 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 80 mm |
| Seal Material | : | Metal |
| Series | : | 63..-2Z |
| Temperature Rating | : | -30 to 120 deg C |
| Width | : | 21 mm |
- Gap seal on both sides
- C3 radial internal clearance
