FAG 6302-C3 FAG6302C3

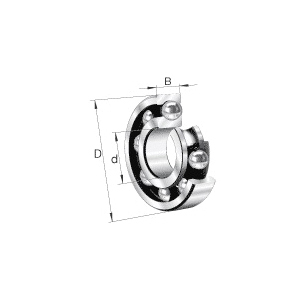

FAG 6302-C3 63 Series Deep Groove Ball Bearing, 15 mm Dia Bore, 42 mm OD, 1 Row, 13 mm W, 12000 N Dynamic/5300 N Static/270 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG6302C3
- MPN: 6302-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Deep Groove Ball Bearing, Series: 63 Series, 15 mm Bore Dia, 42 mm Outside Dia, 1 Row, 13 mm W, Open Closure, 12000 N Dynamic/5300 N Static/270 N Fatigue, Steel Bearing, Steel Cage, 25000 rpm Maximum, 120 deg C, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 15 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 12000 N Dynamic/5300 N Static/270 N Fatigue |
| Maximum Speed | : | 25000 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 42 mm |
| Series | : | 63 Series |
| Temperature Rating | : | 120 deg C |
| Width | : | 13 mm |
- C3 radial internal clearance
