FAG 6302-2Z-L038-C3 FAG6302-2ZC3

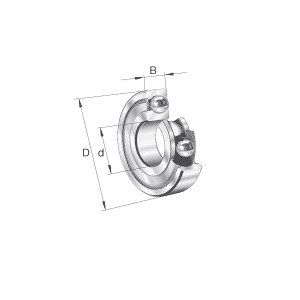

FAG 6302-2Z-L038-C3 63..-2Z Deep Groove Ball Bearing, 15 mm Dia Bore, 42 mm OD, 1 Rows, 13 mm W, 12100 N Dynamic/5400 N Static/275 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG6302-2ZC3
- MPN: 6302-2Z-L038-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Deep Groove Ball Bearing, Series: 63..-2Z, 15 mm Bore, 42 mm OD, 1 Rows, 13 mm Width, Double Shield Closure, 12100 N Dynamic/5400 N Static/275 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 20800 rpm Maximum, -30 to 120 deg C, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 15 mm |
| Cage Material | : | Steel |
| Closure Type | : | Double Shield |
| Finish | : | Uncoated |
| Load Capacity | : | 12100 N Dynamic/5400 N Static/275 N Fatigue |
| Maximum Speed | : | 20800 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 42 mm |
| Seal Material | : | Metal |
| Series | : | 63..-2Z |
| Temperature Rating | : | -30 to 120 deg C |
| Width | : | 13 mm |
- Gap seal on both sides
- C3 radial internal clearance
Specification Sheet
