FAG 6214-C3 FAG6214C3

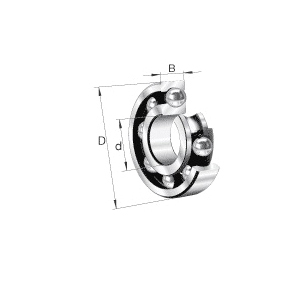

FAG 6214-C3 62 Series Deep Groove Ball Bearing, 70 mm Dia Bore, 125 mm OD, 1 Row, 24 mm W, 66000 N Dynamic/44000 N Static/2950 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6214C3
  • MPN: 6214-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG Deep Groove Ball Bearing, Series: 62 Series, 70 mm Bore Dia, 125 mm Outside Dia, 1 Row, 24 mm W, Open Closure, 66000 N Dynamic/44000 N Static/2950 N Fatigue, Steel Bearing, Steel Cage, 8200 rpm Maximum, 120 deg C, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      70 mm
Cage Material      :      Steel
Closure Type      :      Open
Finish      :      Uncoated
Load Capacity      :      66000 N Dynamic/44000 N Static/2950 N Fatigue
Maximum Speed      :      8200 rpm
Number of Rows      :      1
Outside Diameter      :      125 mm
Series      :      62 Series
Temperature Rating      :      120 deg C
Width      :      24 mm
  • C3 radial internal clearance
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6000_C_2HRS_L038_C3_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6214_C3_Specification_Sheet.pdf
