FAG 6213-2Z-C3 FAG6213-2ZC3

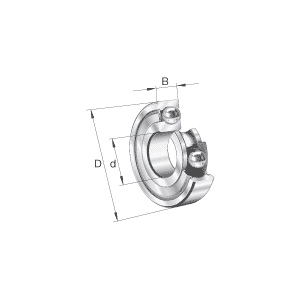

FAG 6213-2Z-C3 62..-2Z Deep Groove Ball Bearing, 65 mm Dia Bore, 120 mm OD, 1 Rows, 23 mm W, 63000 N Dynamic/41500 N Static/2750 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG6213-2ZC3
- MPN: 6213-2Z-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Deep Groove Ball Bearing, Series: 62..-2Z, 65 mm Bore, 120 mm OD, 1 Rows, 23 mm Width, Double Shield Closure, 63000 N Dynamic/41500 N Static/2750 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 7300 rpm Maximum, -30 to 120 deg C, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 65 mm |
| Cage Material | : | Steel |
| Closure Type | : | Double Shield |
| Finish | : | Uncoated |
| Load Capacity | : | 63000 N Dynamic/41500 N Static/2750 N Fatigue |
| Maximum Speed | : | 7300 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 120 mm |
| Seal Material | : | Metal |
| Series | : | 62..-2Z |
| Temperature Rating | : | -30 to 120 deg C |
| Width | : | 23 mm |
- Gap seal on both sides
- C3 radial internal clearance
Specification Sheet
