FAG 6208-C3 FAG6208C3
  1. pin-int

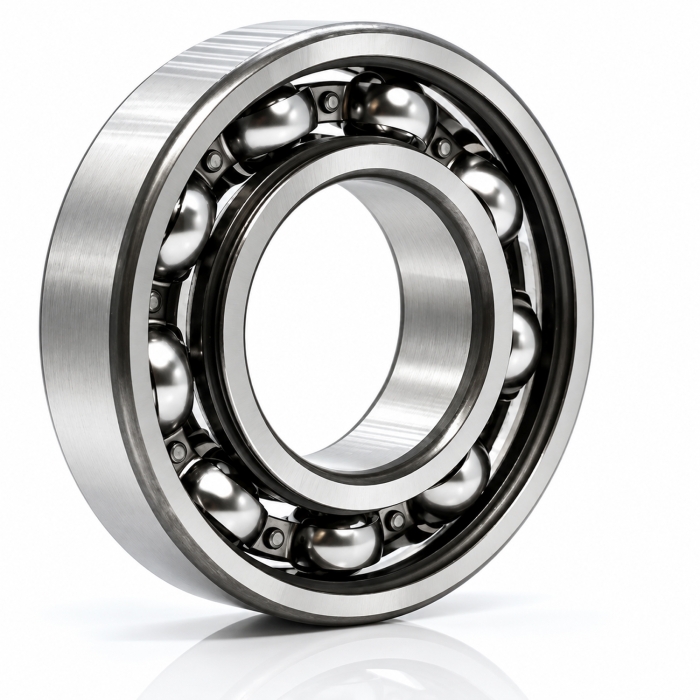

FAG 6208-C3 Open Deep Groove Ball Bearing - 40 x 80 x 18 mm

FAG 6208-C3 Open Deep Groove Ball Bearing, 40 x 80 x 18 mm, 62 Series, C3 Radial Clearance, 31 kN Dynamic / 17.8 kN Static / 0.9 kN Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6208C3
  • MPN: 6208-C3
  • UPC: 4012801069939
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG 6208-C3 is an open 62 Series single-row deep groove ball bearing sized 40 mm bore x 80 mm outside diameter x 18 mm wide. The C3 clearance class provides increased radial internal clearance compared with normal clearance, which can be beneficial when mounting fits, temperature rise or operating speed reduce clearance in service. Open construction gives the equipment designer direct control over lubrication and external sealing. This steel bearing with steel cage is rated 31 kN dynamic, 17.8 kN static and 0.900 kN fatigue load and has a 12,300 rpm maximum speed with service temperature up to 120 °C. Suitable for motors, pumps, gearboxes, textile equipment and other general industrial bearing positions; meets DIN 625-1.

Bearing Material      :      Steel
Bore Diameter      :      40 mm
Cage Material      :      Steel
Closure Type      :      Open
Finish      :      Uncoated
Load Capacity      :      31000 N Dynamic/17800 N Static/900 N Fatigue
Maximum Speed      :      12300 rpm
Number of Rows      :      1
Outside Diameter      :      80 mm
Series      :      62 Series
Temperature Rating      :      120 deg C
Width      :      18 mm
Open single-row 62 Series deep groove ball bearing; 40 mm bore x 80 mm OD x 18 mm width; C3 radial internal clearance is greater than normal and can compensate for clearance reduction caused by tight fits, heat or speed; open construction allows direct control of lubrication and external sealing; steel cage; 31 kN dynamic / 17.8 kN static / 0.900 kN fatigue load ratings; 12,300 rpm maximum speed; service temperature up to 120 C; carries radial loads plus axial loads in both directions; DIN 625-1 design for motors, pumps, gearboxes, textile equipment and general industrial bearing positions.
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6000_C_2HRS_L038_C3_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6208_C3_Specification_Sheet.pdf
