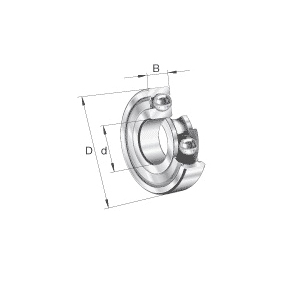

FAG 6208-2Z-C2 FAG6208-2ZC2
FAG 6208-2Z-C2 62..-2Z Deep Groove Ball Bearing, 40 mm Dia Bore, 80 mm OD, 1 Rows, 18 mm W, 31000 N Dynamic/17800 N Static/900 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG6208-2ZC2
- MPN: 6208-2Z-C2
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Deep Groove Ball Bearing, Series: 62..-2Z, 40 mm Bore, 80 mm OD, 1 Rows, 18 mm Width, Double Shield Closure, 31000 N Dynamic/17800 N Static/900 N Fatigue Load, Steel Bearing, Metal Seal, Steel Cage, 10400 rpm Maximum, -30 to 120 deg C
| Bearing Material | : | Steel |
| Bore Diameter | : | 40 mm |
| Cage Material | : | Steel |
| Closure Type | : | Double Shield |
| Load Capacity | : | 31000 N Dynamic/17800 N Static/900 N Fatigue |
| Maximum Speed | : | 10400 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 80 mm |
| Seal Material | : | Metal |
| Series | : | 62..-2Z |
| Temperature Rating | : | -30 to 120 deg C |
| Width | : | 18 mm |
- Gap seal on both sides
- C2 radial internal clearance
Specification Sheet
