FAG 6207-2RSR-L038-C3 FAG6207-2RSC3
  1. pin-int

FAG 6207-2RSR-L038-C3 FAG6207-2RSC3

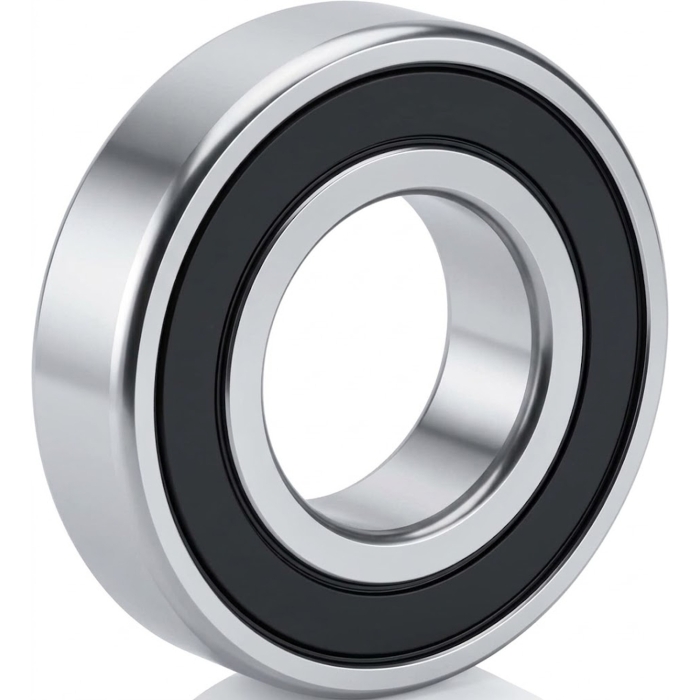

FAG 6207-2RSR-L038-C3 Deep Groove Ball Bearing, 35 x 72 x 17 mm, Double Contact Seals, C3 Clearance, L038 Polyrex EM Grease, 27.5 kN Dynamic Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6207-2RSC3
  • MPN: 6207-2RSR-L038-C3
  • UPC: 4012802586091
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG 6207-2RSR-L038-C3 is a sealed single-row 62 Series deep groove ball bearing with 35 mm bore, 72 mm outside diameter and 17 mm width. RSR contact lip seals on both sides provide stronger contamination exclusion and lubricant retention than a shielded version, while C3 clearance supplies greater-than-normal radial internal clearance. L038 identifies Mobil Polyrex EM grease. The steel-cage bearing has ratings of 27.5 kN dynamic, 15.3 kN static and 0.950 kN fatigue load, a 5,700 rpm maximum speed and a -20 to 100 °C operating range. It is well suited to electric motors, pumps, gearboxes, textile machinery and power tools where a prelubricated, sealed C3 bearing is preferred; meets DIN 625-1.

Bearing Material      :      Steel
Bore Diameter      :      35 mm
Cage Material      :      Steel
Closure Type      :      Double Seal
Finish      :      Uncoated
Load Capacity      :      27500 N Dynamic/15300 N Static/720 N Fatigue
Maximum Speed      :      5700 rpm
Number of Rows      :      1
Outside Diameter      :      72 mm
Seal Material      :      Buna-N
Series      :      62..-2RSR
Temperature Rating      :      -30 to 110 deg C
Width      :      17 mm
Sealed single-row 62 Series deep groove ball bearing; 35 mm bore x 72 mm OD x 17 mm width; 2RSR contact lip seals on both sides provide strong grease retention and contaminant exclusion; C3 radial internal clearance is greater than normal; L038 Mobil Polyrex EM grease provides a prelubricated configuration; steel cage; 27.5 kN dynamic / 15.3 kN static / 0.950 kN fatigue load ratings; 5,700 rpm maximum speed; -20 to 100 C operating range; radial plus bidirectional axial load capability; DIN 625-1 design for motors, pumps, gearboxes, textile machinery and power tools.
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6000_C_2HRS_L038_C3_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6207_2RSR_L038_C3_Specification_Sheet.pdf
