FAG 6205 FAG6205
  1. pin-int

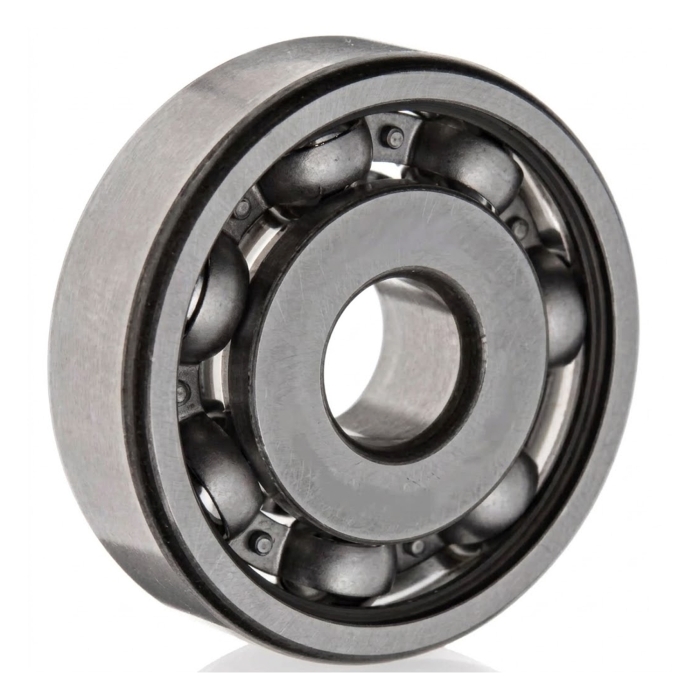

FAG 6205 Open Deep Groove Ball Bearing - 25 x 52 x 15 mm

FAG 6205 Open Deep Groove Ball Bearing, 25 x 52 x 15 mm, 62 Series, Steel Cage, 14.9 kN Dynamic / 7.8 kN Static / 0.395 kN Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6205
  • MPN: 6205
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG 6205 is a standard open 62 Series single-row deep groove ball bearing with a 25 mm bore, 52 mm outside diameter and 15 mm width. Deep groove geometry supports radial load and axial load in both directions while remaining suitable for high rotational speeds. The open design allows the machine or housing to provide its own lubrication and sealing strategy. This steel bearing with steel cage is rated 14.9 kN dynamic, 7.8 kN static and 0.395 kN fatigue load, with a 19,600 rpm maximum speed and service temperature up to 120 °C. A widely used metric bearing size for industrial motors, pumps, gearboxes, fans and general rotating equipment; meets DIN 625-1.

Bearing Material      :      Steel
Bore Diameter      :      25 mm
Cage Material      :      Steel
Closure Type      :      Open
Load Capacity      :      14900 N Dynamic/7800 N Static/395 N Fatigue
Maximum Speed      :      19600 rpm
Number of Rows      :      1
Outside Diameter      :      52 mm
Series      :      62 Series
Temperature Rating      :      120 deg C
Width      :      15 mm
Standard open single-row 62 Series deep groove ball bearing; 25 mm bore x 52 mm OD x 15 mm width; deep raceway geometry supports radial loading plus axial loading in both directions; open design is suited to bearing arrangements where the housing provides lubrication and contamination protection; steel cage; 14.9 kN dynamic / 7.8 kN static / 0.395 kN fatigue load ratings; 19,600 rpm maximum speed; service temperature up to 120 C; DIN 625-1 dimensions; widely used metric 6205 size for electric motors, pumps, gearboxes, fans and general rotating equipment.
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6205_Specification_Sheet.pdf
