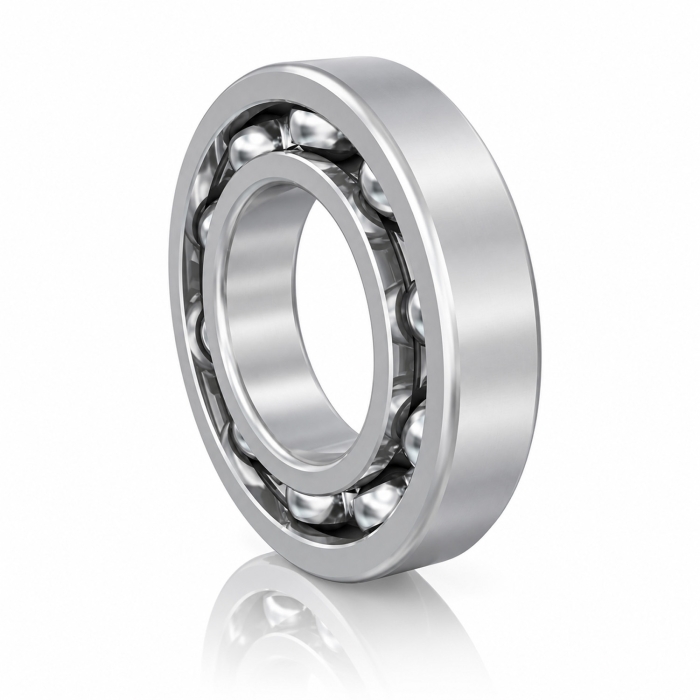

FAG 6205-C3 Open Deep Groove Ball Bearing - 25 x 52 x 15 mm

FAG 6205-C3 Open Deep Groove Ball Bearing, 25 x 52 x 15 mm, 62 Light Series, C3 Radial Clearance, 14.9 kN Dynamic / 7.8 kN Static Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6205C3
  • MPN: 6205-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

Deep groove ball bearings are versatile, self-retaining bearings with solid outer rings, inner rings and ball and cage assemblies. These bearings with their simple design, high resistance and low-maintenance, are available in single-row and double-row designs, as well as sealed and unsealed. Due to the manufacturing processes used, open bearings can have turned recesses in the outer ring for seals or shields.

The FAG 6205-C3 is an open 62 Light Series deep groove ball bearing with 25 mm bore, 52 mm OD and 15 mm width. C3 radial internal clearance is greater than normal, making this version useful where operating temperature, shaft fit or speed can reduce internal clearance during service. With no integral seals or shields, lubrication and environmental protection are supplied by the bearing arrangement. A sheet-steel cage supports the single row of balls. The bearing is rated 14.9 kN dynamic and 7.8 kN static, reaches a listed maximum speed of 19,600 rpm and operates from -30 to 120 °C. Choose this version when the application specifically calls for an open 6205 with C3 clearance.

Bore Diameter      :      25 mm
Cage Material      :      Sheet Steel
Closure Type      :      Open
Load Capacity      :      14900 N
Maximum Speed      :      19600 rpm
Number of Rows      :      1
Outside Diameter      :      52 mm
Series      :      Light Series
Temperature Rating      :      -30 to 120 deg C
Width      :      15 mm
Open single-row 62 Light Series deep groove ball bearing; 25 mm bore x 52 mm OD x 15 mm width; C3 radial internal clearance is greater than normal and helps maintain operating clearance when temperature, speed or shaft fit reduces internal clearance; no integral seals or shields, allowing application-specific lubrication and external sealing; sheet-steel cage; 14.9 kN dynamic / 7.8 kN static load ratings; 19,600 rpm maximum speed; -30 to 120 C operating range; supports radial load and axial load in both directions; choose when an open 6205 bearing with C3 clearance is specified.
