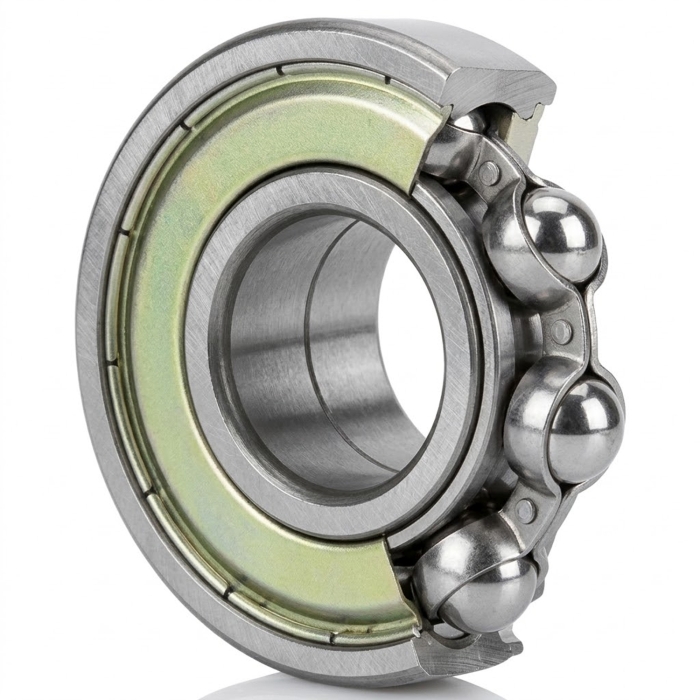

FAG 6204-2Z-L038-C3 Shielded Deep Groove Ball Bearing - 20 x 47 x 14 mm

FAG 6204-2Z-L038-C3 Deep Groove Ball Bearing, 20 x 47 x 14 mm, Double Metal Shields, C3 Clearance, L038 Polyrex EM Grease, 13.6 kN Dynamic Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6204-2ZC3
  • MPN: 6204-2Z-L038-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

The FAG 6204-2Z-L038-C3 is a 62 Series single-row deep groove ball bearing with 20 mm bore, 47 mm outside diameter and 14 mm width. Its 2Z configuration uses a metal shield on each side to reduce contaminant entry without the rubbing contact of a lip seal, while C3 clearance gives additional radial internal clearance for operating conditions that reduce bearing clearance. L038 specifies Mobil Polyrex EM grease. The bearing carries 13.6 kN dynamic, 6.6 kN static and 0.455 kN fatigue ratings and has an 18,700 rpm maximum speed over a -20 to 120 °C operating range. A practical shielded bearing for motors and other high-speed industrial equipment; manufactured to DIN 625-1.

Bore Diameter      :      20 mm
Cage Material      :      Steel
Closure Type      :      Double Shield
Load Capacity      :      13600 N Dynamic/6600 N Static/335 N Fatigue
Maximum Speed      :      18700 rpm
Number of Rows      :      1
Outside Diameter      :      47 mm
Seal Material      :      Metal
Series      :      62..-2Z
Temperature Rating      :      -30 to 120 deg C
Width      :      14 mm
Single-row 62 Series deep groove ball bearing with 20 mm bore x 47 mm OD x 14 mm width; 2Z non-contact shields protect both sides while supporting lower-friction, higher-speed operation than contact-sealed versions; C3 radial internal clearance is greater than normal to preserve operating clearance under heat, speed or tight fits; L038 Mobil Polyrex EM grease; 13.6 kN dynamic / 6.6 kN static / 0.455 kN fatigue load ratings; 18,700 rpm maximum speed; -20 to 120 C operating range; supports radial load plus axial load in both directions; manufactured to DIN 625-1.
  • pdfCatalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6000_C_2HRS_L038_C3_Catalog.pdf
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6204_2Z_L038_Specification_Sheet.pdf
