FAG 6202-Z-C3 FAG6202ZC3

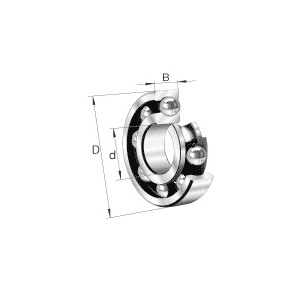

FAG 6202-Z-C3 62 Series Deep Groove Ball Bearing, 15 mm Dia Bore, 35 mm OD, 11 mm W, 8200 N Dynamic/3750 N Static/197 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG6202ZC3
- MPN: 6202-Z-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Deep Groove Ball Bearing, Series: 62 Series, 15 mm Bore, 35 mm OD, 11 mm Width, Single Shield Closure, 8200 N Dynamic/3750 N Static/197 N Fatigue Load, Metal Seal, 30000 rpm Maximum, -30 to 120 deg C
| Bore Diameter | : | 15 mm |
| Closure Type | : | Single Shield |
| Load Capacity | : | 8200 N Dynamic/3750 N Static/197 N Fatigue |
| Maximum Speed | : | 30000 rpm |
| Outside Diameter | : | 35 mm |
| Seal Material | : | Metal |
| Series | : | 62 Series |
| Temperature Rating | : | -30 to 120 deg C |
| Width | : | 11 mm |
- Gap seal on one side
- C3 radial internal clearance
