FAG 6012-C3 FAG6012C3
  1. pin-int

FAG 6012-C3 FAG6012C3

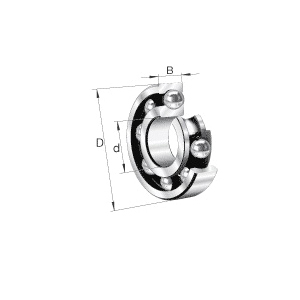

FAG 6012-C3 60 Series Deep Groove Ball Bearing, 60 mm Dia Bore, 95 mm OD, 1 Row, 18 mm W, 31500 N Dynamic/23200 N Static/1190 N Fatigue Load

  • Manufacturer: Schaeffler Group
  • Brand Name: FAG
  • Part Number: FAG6012C3
  • MPN: 6012-C3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • loading
  • Sign In for Pricing and Availability

FAG Deep Groove Ball Bearing, Series: 60 Series, 60 mm Bore Dia, 95 mm Outside Dia, 1 Row, 18 mm W, Open Closure, 31500 N Dynamic/23200 N Static/1190 N Fatigue, Steel Bearing, Steel Cage, 10100 rpm Maximum, 120 deg C, Uncoated

Bearing Material      :      Steel
Bore Diameter      :      60 mm
Cage Material      :      Steel
Closure Type      :      Open
Finish      :      Uncoated
Load Capacity      :      31500 N Dynamic/23200 N Static/1190 N Fatigue
Maximum Speed      :      10100 rpm
Number of Rows      :      1
Outside Diameter      :      95 mm
Series      :      60 Series
Temperature Rating      :      120 deg C
Width      :      18 mm
  • C3 radial internal clearance
  • pdfSpecification Sheet https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/FAG_6012_C3_Specification_Sheet.pdf
