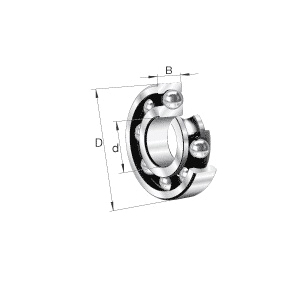

FAG 6009-C3 FAG6009C3
FAG 6009-C3 60 Series Deep Groove Ball Bearing, 45 mm Dia Bore, 75 mm OD, 1 Row, 16 mm W, 21200 N Dynamic/14400 N Static/730 N Fatigue Load
- Manufacturer: Schaeffler Group
- Brand Name: FAG
- Part Number: FAG6009C3
- MPN: 6009-C3
- Min. Order Qty: 1
- Qty. Interval: 1
- Sign In for Pricing and Availability
- Sold As: 1/EA
-
Price:
FAG Deep Groove Ball Bearing, Series: 60 Series, 45 mm Bore Dia, 75 mm Outside Dia, 1 Row, 16 mm W, Open Closure, 21200 N Dynamic/14400 N Static/730 N Fatigue, Steel Bearing, Steel Cage, 13100 rpm Maximum, 120 deg C, Uncoated
| Bearing Material | : | Steel |
| Bore Diameter | : | 45 mm |
| Cage Material | : | Steel |
| Closure Type | : | Open |
| Finish | : | Uncoated |
| Load Capacity | : | 21200 N Dynamic/14400 N Static/730 N Fatigue |
| Maximum Speed | : | 13100 rpm |
| Number of Rows | : | 1 |
| Outside Diameter | : | 75 mm |
| Series | : | 60 Series |
| Temperature Rating | : | 120 deg C |
| Width | : | 16 mm |
- C3 radial internal clearance
